How to choose a suitable electromagnetic flow meter

sales01@cxflowmeter.com

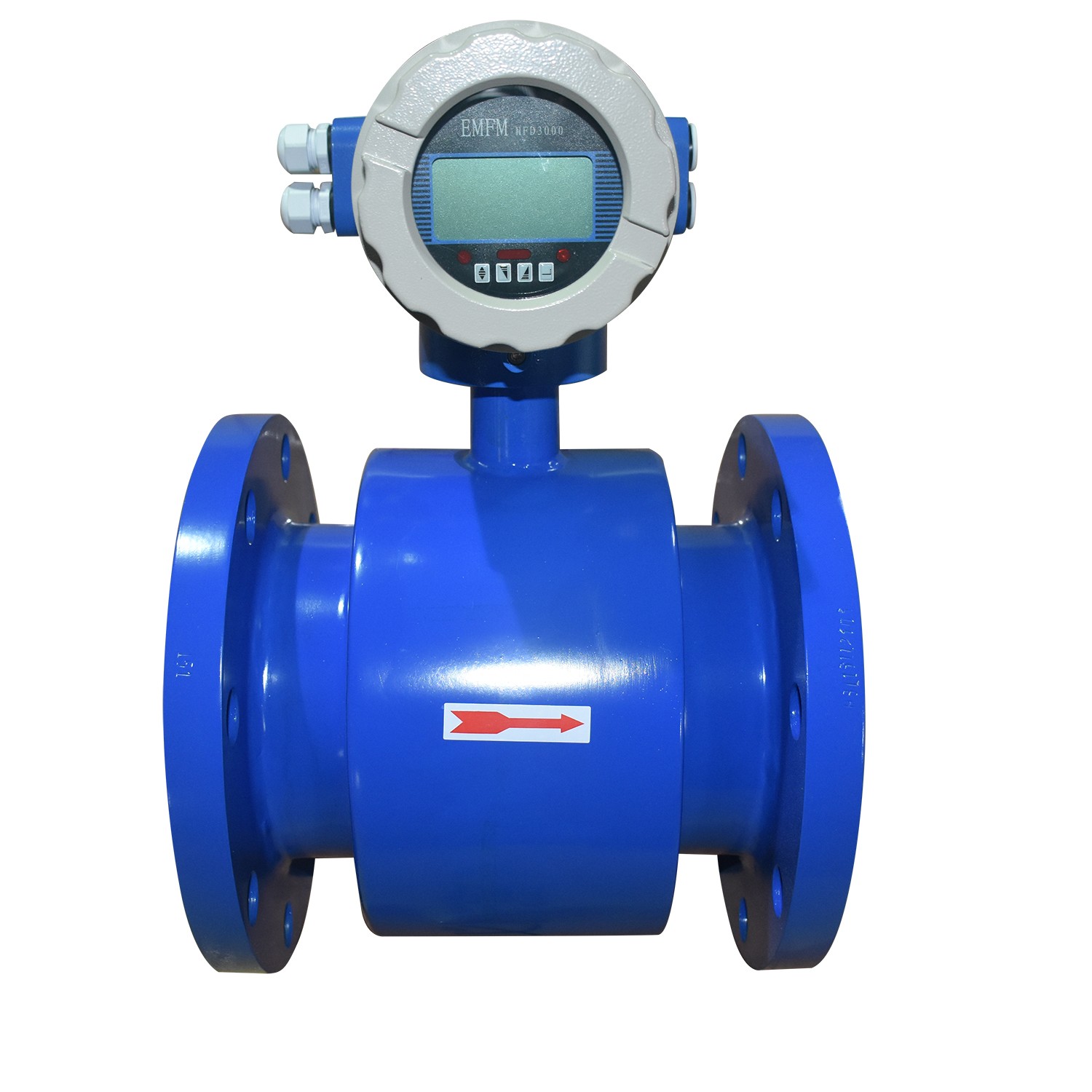

Electromagnetic flow meter magnetic flow sensor is an instrument that uses the principle of electromagneticinduction to measure the flow of conductive fluid according to the electromotive force

induced by the conductive fluid passing through an external magnetic field. Therefore,

the measured liquid fluid must have conductivity.

The structure of electromagnetic flowmeter is mainly composed of magnetic circuit

system, measuring conduit, electrode, shell, lining and converter.

So what aspects should we consider when choosing a flowmeter?

First, the selection of caliber and range

The diameter of the flowmeter is usually the same as that of the piping system. If the

channel dividing system is to be designed, the caliber can be selected according to the

range of the flow mother and the flow rate. For electromagnetic flowmeters, the flow

velocity is more suitable at 2-4m/s. In special cases. If there are solid particles in the

liquid, considering the wear condition, the commonly used flow velocity can be ≤3m/s.

 For the fluid that is easy to attach to the pipe wall, the flow velocity can be selected

≤2m/s. After the flow velocity is determined, it can be selected according to

to determine the diameter of the transmitter.

The range of the flowmeter can be selected according to two principles: one is that the

full range of the meter is greater than the expected maximum flow value, and the other

is that the normal flow value is greater than 50% of the full range of the meter to ensure

a certain measurement accuracy.

lining options

Correct selection method of electromagnetic flow meter lining material

The lining material should be selected according to the corrosiveness, abrasiveness and

temperature of the measured medium:

1. Natural rubber (soft rubber)

1. Good elasticity, wear resistance and tearing force

2. Resistant to general weak acid and weak alkali corrosion

3. Measuring water and sewage

2. Acid-resistant rubber (hard rubber)

Resistant to the corrosion of hydrochloric acid, acetic acid, oxalic acid, ammonia water,

phosphoric acid and 50% sulfuric acid, sodium hydroxide, potassium hydroxide at room

temperature, but not resistant to strong oxidants

Measure general acid, alkali and salt solution

3. Neoprene

1. Excellent elasticity, high breaking force, good wear resistance

2. It is resistant to corrosion by general low-concentration acid-base and salt solutions,

but not resistant to corrosion by oxidative media

<80℃;

Water, sewage, mud and slurries

4. Polyurethane rubber

1. Excellent wear resistance

2. Poor acid and alkali resistance

<40℃

Measure neutral and highly abrasive coal slurries, slurries and ore slurries

5. Polytetrafluoroethylene (PTFE)

1. Resistant to boiling hydrochloric acid, sulfuric acid, nitric acid, aqua regia, concentrated

alkali and various organic solvents

2. Good wear resistance and poor adhesion

-80～+180℃;

Concentration measurement, concentrated alkali strong corrosive solution and hygienic

medium

Application site selection

1. Understand the process parameters

(1) Know the name of the liquid to be tested (provided by the user)

(2) Understand the maximum flow, common flow, and minimum flow of the liquid to be

measured (provided by the user)

(3) Understand the process pipe diameter (provided by the user)

(4) Understand the medium temperature (provided by the user)

(5) Understand the medium pressure (provided by the user)

(6) Understand the conductivity of the fluid to be measured (provided by the user)

(7) Find out if there is negative pressure (provided by the user)
