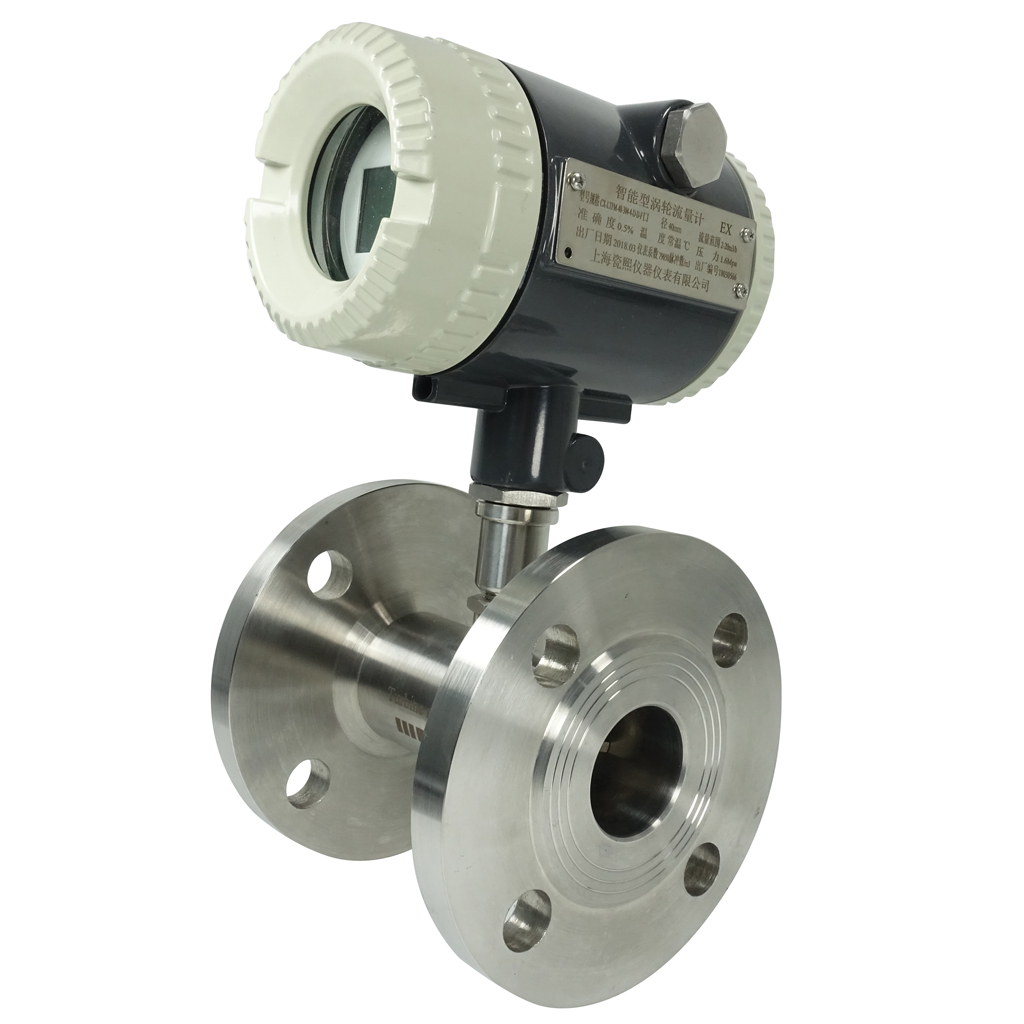

Before understanding the working principle of turbine flow meter, we need to know the composition of
turbine flowmeter. The turbine flowmeter is composed of a turbine flow sensor and a flow display
instrument (volume corrector or flow totalizer), which can realize the measurement of instantaneous
flow and cumulative total, and can realize the instantaneous flow and cumulative total of the standard
state when humidity and pressure compensation are added. Quantitative measurement. The turbine
components (including front and rear guides, impellers, bearings, housings, and sales number detection
components) that sense the fluid flow rate of the turbine flowmeter are generally referred to as turbine
flow sensors, and the signal processing and conversion part after the turbine speed is detected is called
Secondary meter or display meter.
Turbine Blades and Pulse Signals
The rotational speed of the turbine is detected by a sensor coil mounted outside the casing. When the
turbine blade cuts the magnetic field lines generated by the permanent magnet steel in the casing, it will
cause the change of the magnetic flux in the sensing coil. The sensing coil sends the detected magnetic
flux periodic change signal to the preamplifier, amplifies and shapes the signal, generates a pulse signal
proportional to the flow rate, and sends it to the unit conversion and flow accumulation circuit to obtain
and display the cumulative flow value; At the same time, the pulse signal is also sent to the frequency-current
conversion circuit to convert the pulse signal into an analog current, thereby indicating the instantaneous
flow value.
Turbine Wheel Description
According to the installation direction of the impeller relative to the flow direction, it is divided into two
types: tangential type and axial type. The tangential structure is: the tangential flow of the medium
makes the impeller in the metering chamber rotate, which can be vividly described as a "waterwheel"; on
the contrary, the axial flow sets the impeller to keep the shaft parallel to the flow direction in the tube,
and the impeller It rotates under the action of the axial medium, which can be vividly described as
a "windmill".
How Turbine Flow Meters Work
The principle of the turbine flowmeter is to place a turbine in the center of the pipeline, and the two ends
are supported by bearings. When the fluid passes through the pipe, it impacts the turbine blades and
generates a driving torque for the turbine, so that the turbine rotates by overcoming the friction torque
and the fluid resistance torque. In a certain flow range, for a certain fluid medium viscosity, the rotational
angular velocity of the turbine is proportional to the fluid velocity. From this, the fluid flow rate can be
obtained from the rotational angular velocity of the turbine, which can be calculated.
