How Vortex Flow Meters Measure Steam

How Vortex Flow Meters Measure Steam?  please contact winny: sales01@cxflowmeter.com

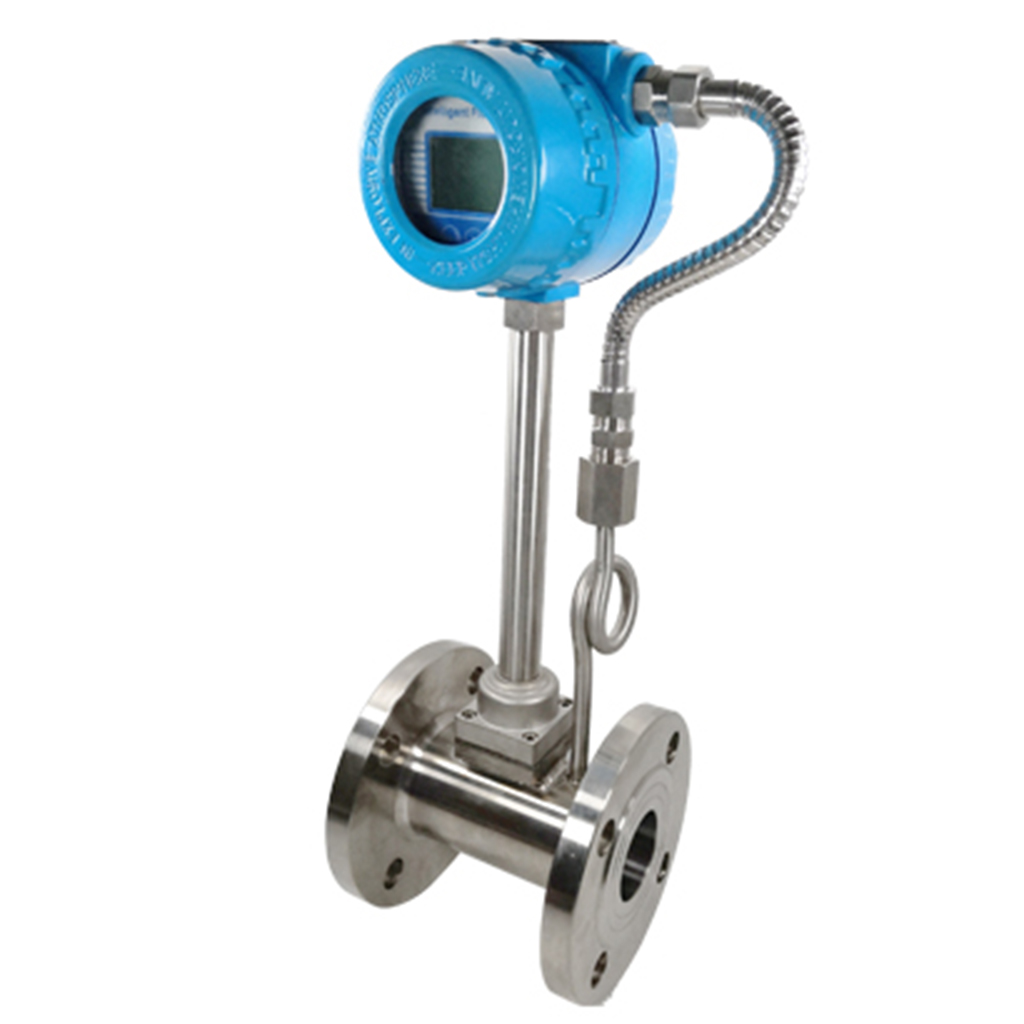

The first, and the most widely used, is the vortex flow meter with temperature and pressure compensation. This is an indirect vortex mass flow

meter. In actual use, the density is indirectly measured through the measurement of temperature and pressure, and then multiplied by the

 volume measured by the vortex flowmeter to calculate the mass.

Second, the lift-type vortex flowmeter directly measures the quality of the medium. The theoretical basis is: the mass flow of the medium has

 a certain proportional relationship with the strength of the vortex, and the mass of the medium can be directly calculated by calculating the

strength of the vortex.

The last one is the differential pressure vortex mass flowmeter, differential pressure signal + vortex flowmeter = differential pressure vortex

mass flowmeter. The differential pressure signal is the pressure difference between the two pressure taking holes at specific positions upstream

 and downstream of the generating body. The axes of the two pressure taking holes should be in the same plane as the axis of the generating

 body. The distance of the pressure taking hole has a significant influence on the size and stability of the differential pressure value. The

distance is short, the differential pressure signal is large, but the stability is poor; the distance is long, the opposite is true. It is very important

 to choose the appropriate pressure-tapping hole location through experimentation. Compared with the lift-type vortex mass flowmeter, this

 instrument is simpler and easier to implement.
