On-site analysis of coke oven gas cooling flow meter

sales01@cxflowmeter.com

Coke oven gas has high temperature and high humidity when it leaves the factory, so

 we have moisture management in the process of gas transportation.

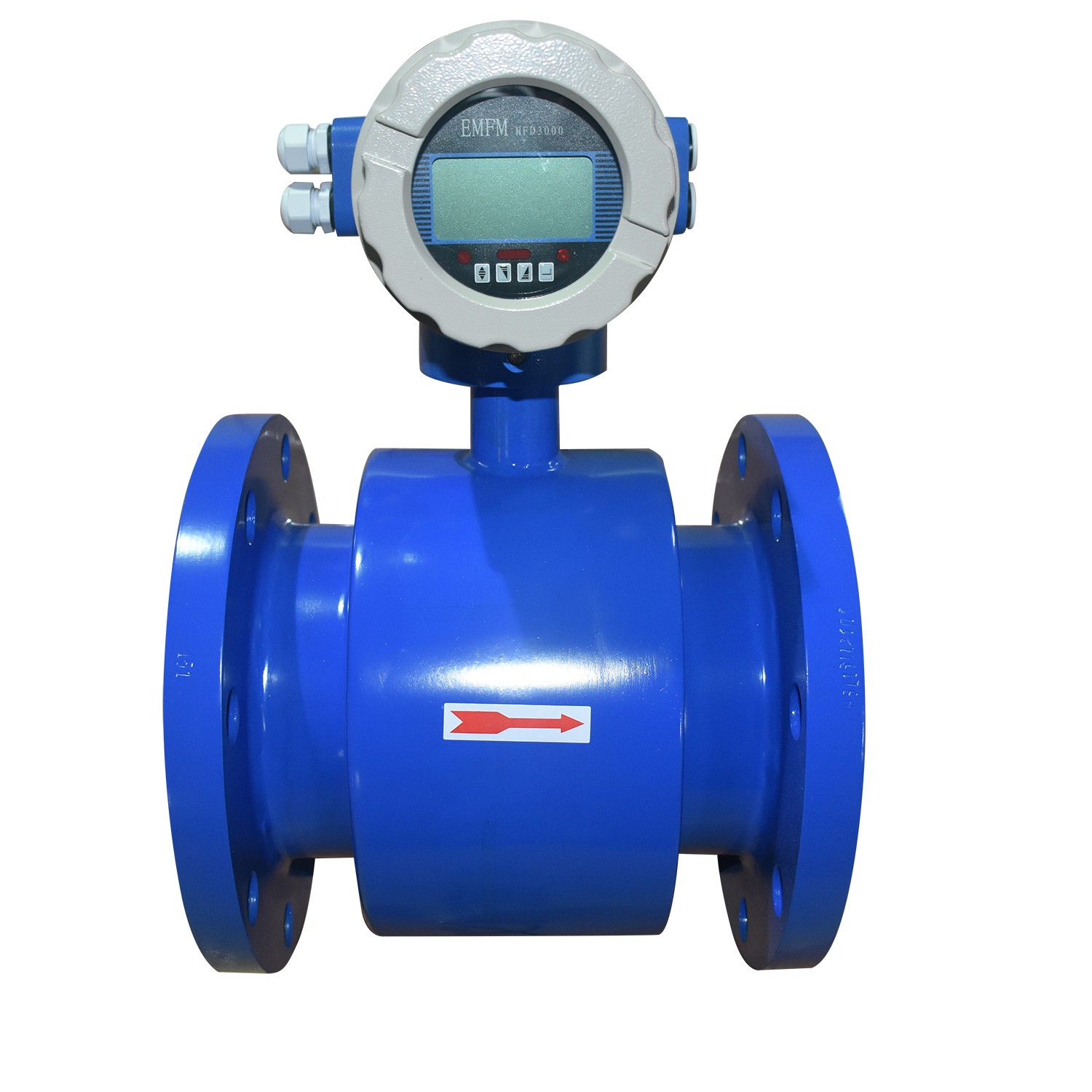

Electromagnetic flow meter is an inductive instrument manufactured according to

Faraday's law of electromagnetic induction to measure the volume flow of conductive

 medium in a pipe.

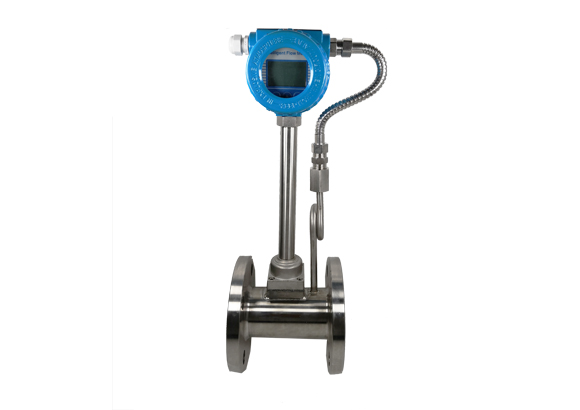

Vortex flow meter is a volume flowmeter that measures the volume flow of gas, steam

 or liquid, the volume flow of standard conditions or the mass flow. Mainly used for

flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and

other media.

Magnetic flap liquid level gauge + analog liquid level transmitter, consists of two

parts: liquid level sensor and signal converter. The liquid level sensor is composed of

several reed switches and several resistors installed in a φ20 stainless steel protective

 tube. The protective tube is fastened to the outside of the measuring tube (main tube);

the signal converter is composed of electronic modules, which are placed on the

explosion-proof wiring at the top or bottom of the sensor. Three, the main technical

parameters

Precautions for use on site

1) It is well known to the users that the electromagnetic flowmeter is not suitable to be

 installed in the occasion of strong vibration, but in the occasion of frequent change of

 the magnetic field, the vortex flow sensor will measure the signal output higher than

 the normal value.

3) Since the impurities in the coke oven gas are easier to crystallize, the impurities

condense on the sensor head, resulting in inaccurate measurement. At elevated

temperatures, volatile impurities, increase sensitivity, signal enhancement; contrast

decreases. cause data instability.

Practical research has proved that in the field without gas flow, when the vortex flow

sensor technology is in the developing and changing magnetic field, at the moment

of the magnetic field change, the vortex flow sensor will sense an error signal and

output, when the change process is over, the instrument is in In such a stable

magnetic field, the instrument will output as a normal working signal.
