​Dye micro flow meter

Dye micro flow meter, Contact email: sales6@microflowmeter.com

Dye micro flow meter is widely used in petroleum, chemical and hydraulic industries due to its advantages of high precision, simple installation, stable performance and good repeatability.However, the Dye micro flow meter that can be produced domestically can only be applied due to the impatience of high pressure In the low pressure occasion, the high pressure measurement occasion can only rely on the foreign imported high pressure flowmeter.Therefore, the research of the high pressure Dye micro flow meter will help to expand the domestic application of the Dye micro flow meter and promote the development of the domestic flow measurement. Deep instrumentation independent research and development of the Dye micro flow meter pressure up to 1000bar, it can be said has reached a higher level in the world, and obtain measurement certificate.

Shanghai JSN Micro Flow Meter CO.,LTD is the professional supplier for dye micro flow meter ,mass flow meter,electromagnetic flow meter,micro flow meter,gear pump.The products are widely used for Petroleum, petrochemical, chemical, metallurgy, nuclear industry, environmental protection, electricity, national defense, medicine, food and other fields, and exported to foreign countries. The company was founded in 2011 by Siemens engineers and has advanced CNC machining centers in the country. Since its inception, the company has continued to profit, has developed steadily, has strong technical equipment and human resources, and has provided a large number of high-quality metering products for various industries in the national economy.

Dye micro flow meter is a new type of volumetric flowmeter, in addition to a positive displacement flowmeter with high accuracy, the flow is not sensitive to other advantages, there are the following advantages: Wide range, usually in the flow meter is 10: l, and Deep flowmeter is generally 100: 1, or even 1000: 1, the accuracy is still above 0.5%, suitable for high pressure flow measurement, the maximum pressure can reach 100Mpa, especially suitable for the measurement of small flow, the minimum measurement limit can be 0.3ml / min , Less affected by the viscosity characteristics of the medium, suitable for flow measurement under various viscosity conditions.

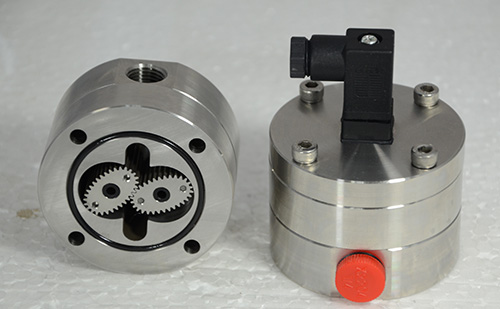

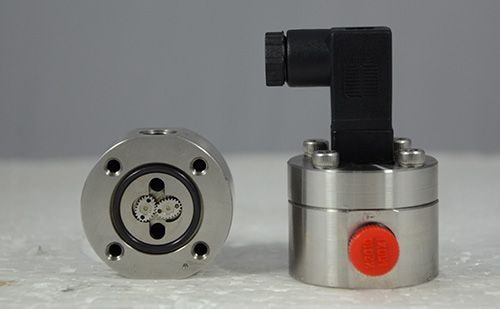

Dye micro flow meter Through the rotation of the gear cavity, through a series of deceleration and speed ratio adjustment mechanism, directly connected with the indicator on the instrument panel, and through the mechanical counter for the total display. Or remote display is mainly through The decelerated gear drives the permanent magnet to rotate so that the contacts of the spring relay (Hall sensor) are closed or opened synchronously at the same rotation frequency as the permanent magnet, thereby sending one electric pulse to the other display instrument.
1、1) BYD electric vehicle: The battery of the electric vehicle needs to add electrolyte, the price of one side of the electrolyte is very expensive, and on the other hand, whether the electrolyte is added accurately has a great influence on the quality of the product, so BYD's requirements were very demanding at that time. Only 1 ~ 2ml/min, duration of only 3 seconds, fortunately I was not an expert in ultramir flow meter, with CX-M2-SS took orders.
2、Australia TECALFMIT company: The company is very professional in the lubrication industry, has more than 75 years of history, they need us to provide flow measurement of grease (high viscosity), the flowmeter under pressure requirements in the 40 ~ 100MPA.
3、SAWCORLTD is a large-scale automobile painting company. The customer uses a spray paint which is a mixture of a certain percentage of resin, butyl acetate and other solvents. To control the quality, it is necessary to ensure that the flow rate is 20ml/min, less than 19ml/min or Above 21ml/min need alarm.

Dye micro flow meter, Contact email: sales6@microflowmeter.com
