Paint micro flow meter

Paint micro flow meter, Contact email: sales6@microflowmeter.com

At present domestic Paint micro flow meter structure is complex, bulky, bulky, noisy, small scale, not suitable for low viscosity liquid, the market is more common with DTO series and OGM series. For these problems the country has been unable to overcome, while the Shanghai JiShen instrument Instrument company oval gear Paint micro flow meter does not have the above problems, such as the same DN25 caliber, our model CX-M25-AL, flow range: 0.5 ~ 100L / M, range of 1: 200 or higher, and weighs only 1.5KG , While the DTO-25, the flow of 600-6000L / H, range ratio of only 1:10, the weight of up to 23KG. All this due to technological breakthroughs, our chief engineer Tu workers, he is a former Siemens senior engineer, the use of equipment It is also Siemens CNC Machining Center with cutting accuracy up to 0.001mm, which ensures that we produce high quality flow meters.

Shanghai JSN Micro Flow Meter CO.,LTD is main flow metering equipment R&D and production company. The company's flowmeter and gear pump in scientific research, development, production status.After several decades of reform and development, JSN has formed a company model of independent development, production, testing, sales and service integration. 70% of its products are exported to foreign countries, and have undertaken major projects in China, and key enterprises in the industry. Pump supporting projects. It has been promoted and applied in various engines, polyurethane, dispensing, chemical, lubrication, chemical fiber and other industries in China.Main products: micro flow meter,paint micro flow meter ,coriolis mass flow meter,electromagnetic flow meter,piston flow meter,spur gear flow meter,gear pump,gear metering pump etc.
Paint micro flow meter, belonging to a type of volumetric flowmeter, cylindrical shape, with import and export, according to the media with a custom filter. Small size, light weight, easy installation, compact structure, without too much maintenance; other The range ratio is very wide, generally more than 1: 100, the minimum flow rate can be measured to 0.3ml / min; and the linearization accuracy can reach 0.5% FS of full scale, so the use is very wide and can be used for measuring, regulating, controlling and distributing High and low viscosity, or corrosive liquids, and there are health-type, explosion-proof for a special environment.

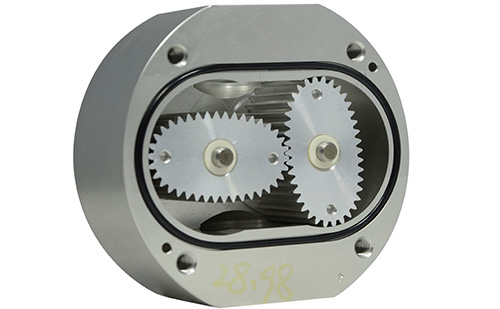

The Paint micro flow meter is composed of a pair of gears, bearings, shafts, housings, amplifiers, electromagnetic sensors and other components with exactly the same geometrical parameters. The two meshing gears divide the enclosed volume enclosed by the housing and the gear into two parts, when the fluid flows through the cylinder. In the meter, due to the mechanical friction and the loss of energy of the fluid itself, a pressure drop occurs between the inlet chamber and the outlet chamber. It is precisely under these two forces that the gear rotates in a certain direction, and the fluid is divided into small volumes. The metering unit is brought to the outlet.
1、Tai'an injector nozzle test bench manufacturer: Tai'an is the production base of China's common rail injector test bench. It has produced more than half of China's injector test benches. Previously only KRACHT, OVAL, etc. were selected. Most of us use our CX-M5-AL (5~1000ml/min), the annual purchasing volume exceeds 500 units, and we have specially developed a test bed for the test bench: CX-M3-CRI: 1~400ml/min is used to adapt Most models.
2、McDonald's thermoking cold chain transporter: Remotely monitor the fuel consumption of cold storage and transport vehicle engines via GPS. The cold storage engine uses our CX-M6-AL (0.5~100L/H), and the vehicle engine uses CX-M9-AL (6~ 600L/H), accuracy requirements are 0.5%FS, pass pulse output to GPS module for remote monitoring.
3、Iran GG GAS CONTROL: GC was established in 1990 is Iran's well-known natural gas odor company, odor is very expensive, the viscosity is only 0.55cp (20C), the requirement is the minimum flow of 0.05 L / H, commonly used flow: 0.1L /H, maximum flow 0.3 L/H, and require explosion protection.
