Selection of hydrochloric acid centrifugal pump

Today a customer needs to buy a hydrochloric acid centrifugal pump, and he provided the following information:

1.

Medium: hydrochloric acid (concentration up to 2-3%, maximum size 1 mm)

Flow rate: 30m³/h

Differential pressure: 56m

Maximum viscosity: 200cp

Density: 1.1kg/cm³

Working temperature: 20-90℃

Motor: 15 kW B3B5, 160. 2P. V400/690. 50HZ IP55 (reference, similar accepted)

Casing material: polypropylene

Impeller: PP

Shaft: SS316

Mechanical seal

Flange connection: 50/32mm

Bottom plate: SS316

Quantity: 1

2.

Medium: hydrochloric acid (concentration up to 10%, maximum size 9 mm)

Flow rate: 75m³/h

Differential pressure: 38m

Maximum viscosity: 200cp

Density: 1kg/cm³

Operating temperature: 20-90℃

Motor: 11kW 2P. V400/690. 50HZ IP55 (reference, similar accepted)

Casing material: polypropylene

Impeller: PP

Shaft: SS316

Mechanical seal

Threaded connection: 65/50mm

Bottom plate: SS316

Quantity: 3

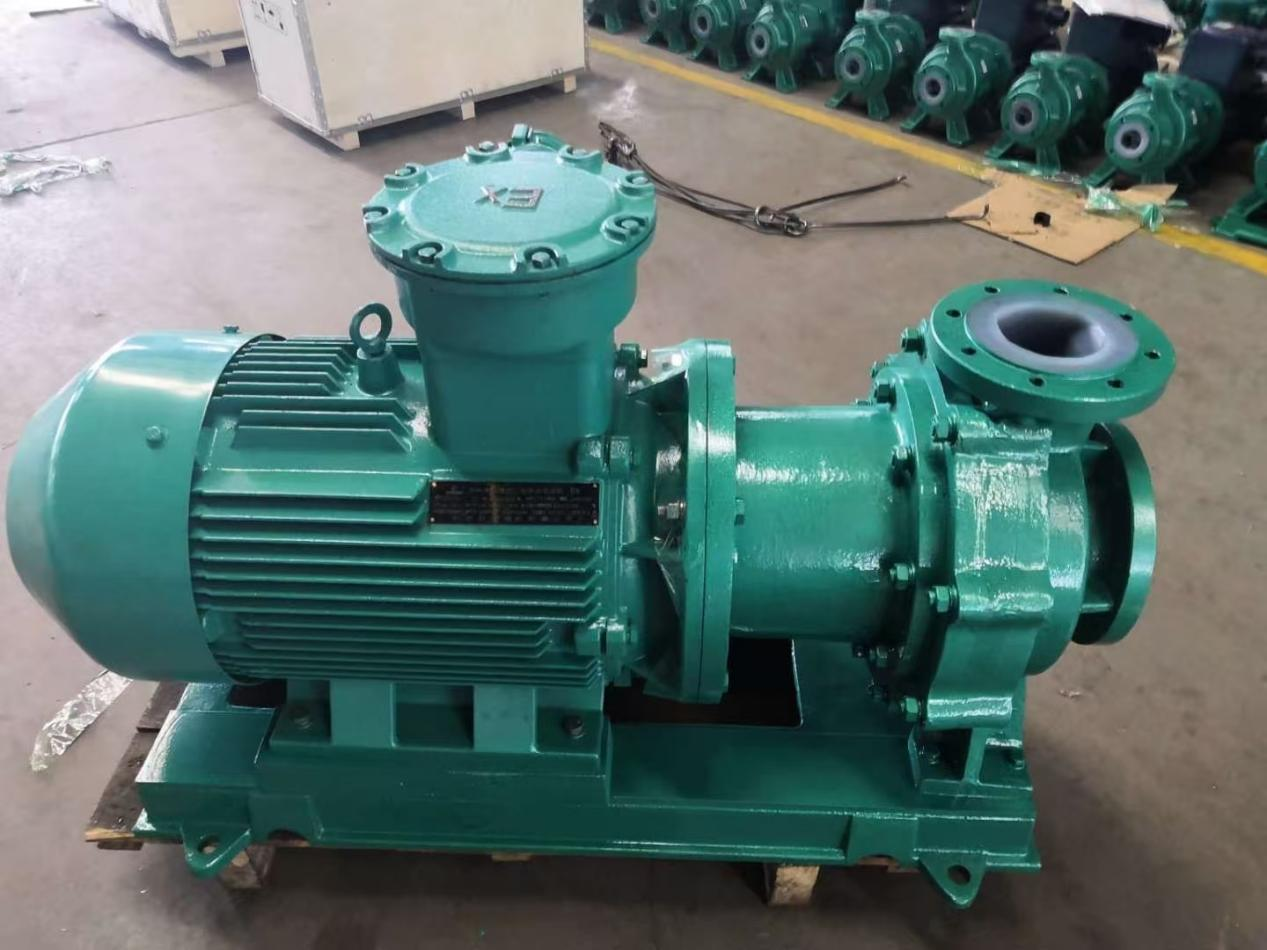

After analysis, our technicians selected the following specific product models for him:

1.

CQB65-40-250F

Medium: hydrochloric acid (concentration up to 2-3%, maximum size 1 mm)

Flow rate: 30m³/h

Differential pressure: 56m

Maximum viscosity: 200cp

Density: 1.1kg/cm³

Operating temperature: 20-90℃

Motor: 18.5kw -2

Power supply: 400V50HZ

Casing material: steel lined with PTFE

Impeller: PTFE

Shaft: Silicon nitride

Mechanical seal

O-ring material: fluororubber

Flange connection: 65/40

Bottom: SS316

2.

CQB100-65-200F

Medium: hydrochloric acid (concentration up to 10%, maximum size 9 mm)

Flow rate: 75m³/h

Differential pressure: 38m

Maximum viscosity: 200cp

Density: 1kg/cm³

Working temperature: 20-90℃

Motor power: 30kw-2

Power supply: 400V50HZ

Casing material: steel lined with PTFE

Impeller: PTFE

Shaft: Silicon nitride

Mechanical seal

O-ring material: fluororubber

Flange connection: 100/65

Bottom: SS316
