Flow switch selection

Today a customer wants to buy a flow switch, he provided the following information

Connection: 1 inch external thread.

Suitable for 1 inch to 8 inch pipes.

Maximum working pressure: 10 bar.

Maximum flow temperature: 110℃.

Storage temperature: -20℃ - 80℃.

Rated voltage/current: 24VAC/10A.

Protection level: IP54

Coated steel housing

Brass connector

Blade: Stainless steel

Waterproof bellows: Copper-zinc alloy.

Later, after our technicians checked it, they felt that our

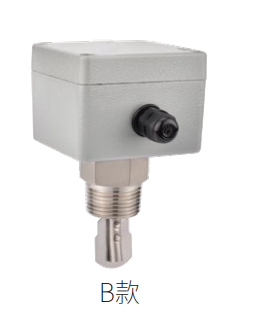

CX-FS-FB11 target flow switch was the most suitable

Target switch (baffle)

-Repeatability: ±2.5% of total range

-Wiring method: Terminal wiring

-Output: switch normally open + normally closed (250VAC, 3A 24VDC)

-Pressure resistance: 40bar (stainless steel)

-Average pressure loss: 0.08bar (at maximum flow)

-Ambient temperature: -25~80℃

-Medium temperature: stainless steel material 180℃

-Interface thread: R1 external thread

-Protection level: IP67

-Material: Body: stainless steel

-Casing material: engineering plastic/zinc alloy

Process connection: stainless steel

-Baffle: stainless steel

If you also have flow switch selection and quotation requirements, please consult CIXIFM winny:
