liquid flow meter/controller

  • gear gasoline flow meter
  • gear gasoline flow meter

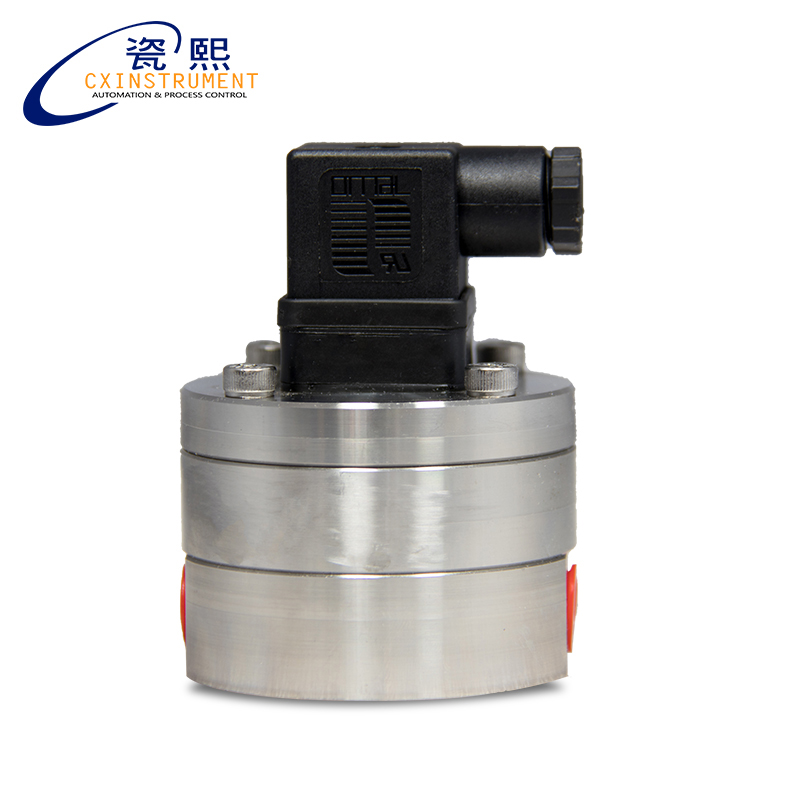

gear gasoline flow meter

Gear gasoline flow meter

Function introduction Function introduction

Gear gasoline flow meter is widely used in industrial and agricultural production, national defense construction, scientific research, foreign trade and people's life. In the production of petroleum industry, flow measurement runs through the whole process from oil exploitation, transportation, refining, metallurgy and processing to trade sales. Any link can not be separated from flow measurement, otherwise the normal production and trade exchanges of the oil industry can not be guaranteed. In chemical industry, inaccurate flow measurement will cause imbalance of chemical composition distribution ratio, unable to guarantee product quality, and even production safety accidents will occur. In the electric power industry production, the measurement and regulation of the flow rate of liquid, gas, steam and other media occupy an important position. The accuracy of flow measurement is not only of great economic significance to ensure that the power plant operates under the optimal parameters, but also with the development of high temperature, high pressure and large capacity units, flow measurement has become an important link to ensure the safe operation of power plants. If the instantaneous feed water flow of large capacity boiler is interrupted or reduced, serious dry boiler or tube burst accident may be caused. This requires the flow measurement device not only to measure accurately, but also to send out alarm signal in time. In the production of iron and steel industry, the flow measurement of circulating water and oxygen (or air) is one of the important parameters to ensure the quality of products. In light industry, food, textile and other industries, it is also inseparable from the flow measurement.


What's the introduction of Gear gasoline flow meter?
Micro capacity flowmeters provide precise volumetric flow measurement of clean liquids found in a broad
range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of
fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink, insecticides & non-conductive
liquids either pumped or gravity fed

what's the main features of Gear gasoline flow meter ?
1) Compact & economical design suited for OEM
2) High accuracy & repeatability
3) No requirement for flow conditioning
4)Stainless steel rotors
5) Measures high & low viscosity liquids
6)Original Equipment Manufacturers

What's the main parameters of Gear gasoline flow meter For Plastic Technology ?

Model
CX-M2.1
CX-M5.1
CX-M6
CX-M9
CX-M25
Flow range
1-400 ml/min
5-1750 ml/min
0.5-100 ml/min
5-550 l/H
5-110 l/min
Connection
G1/8 female thread
G1/8 female thread
G1/4 female thread
G1/4 female thread
G1 female thread
Accuracy
0.5%,0.2%
Temperature
-40~80°C(customized for 150C)




Pressure
32bar(customized for 250bar)
Output
square-wave pulse
Supply
4-26VDC
-SS series

material
chamber:ss316 ,gear:SS316L, shaft:SS316L
Medium
suitable for various chemical liquid
-AL series

Medium
suitable for non-corrosive fluid
material
chamber: anodized aluminum , gear: anodized aluminum, shaft:SS316L

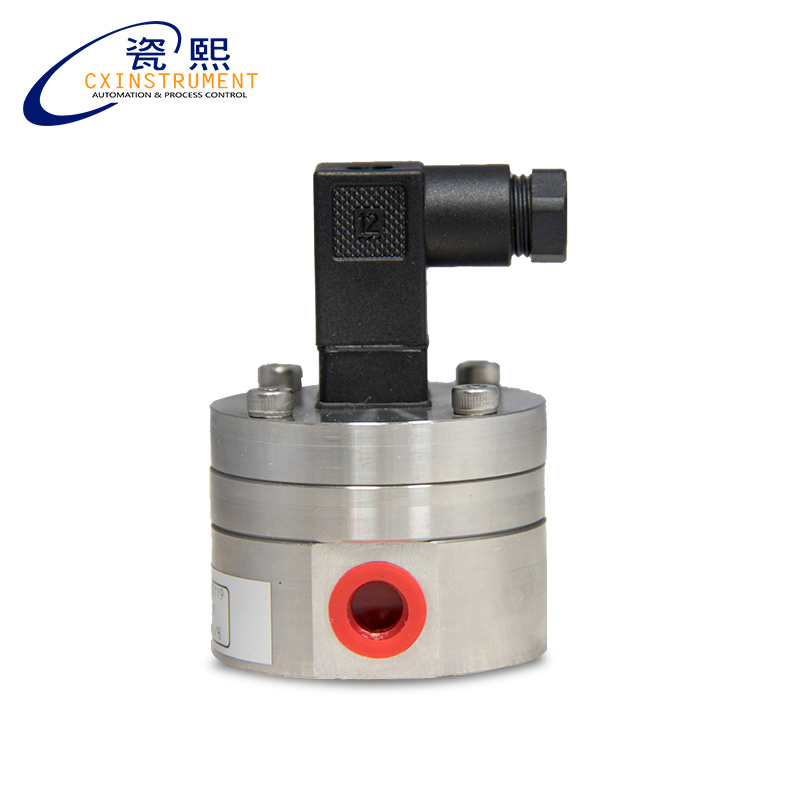

low volume gear flow 7.jpg
