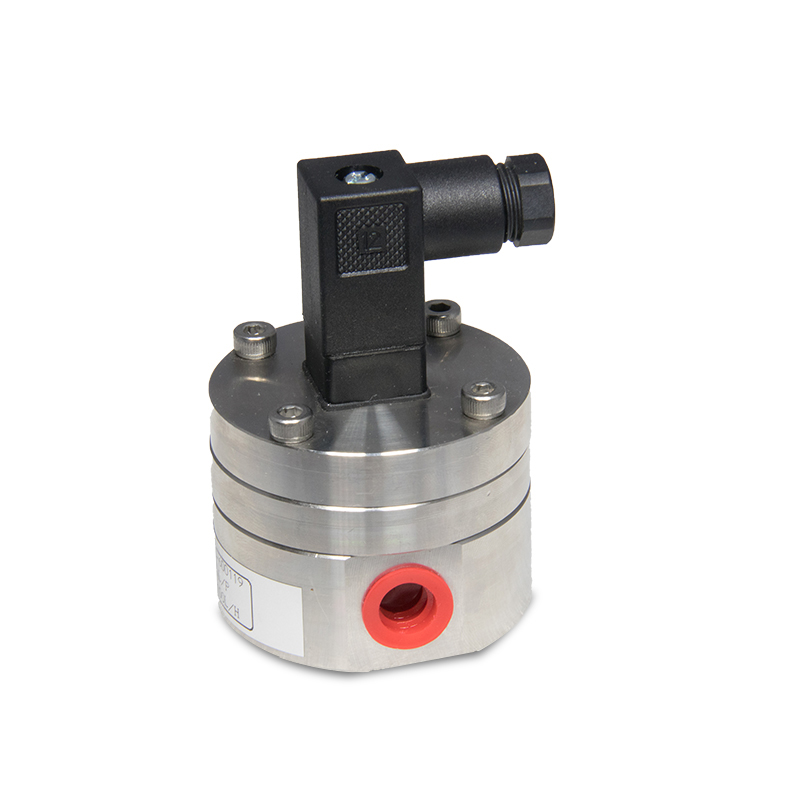

The Vegetable Oil Beer And Alcohol Liquid Control PD Gear Micro Flow Sensor

Water Oil Ch

Function introduction Function introduction

Micro flow sensors offer a full range of leak / seal solutions and optional accessories, such as standard leak holes, equivalent channels, and calibration samples for verification.

A.[Feature of 100% Sanitary Material Lard Oil Micro Flow Meter]

High Accuracy
The standard type is 0.5%,for some special medium the accurcy is 0.2%.

The Min Flow Range
The min flow range is 0.5ml/min,The M2 flow range is 0.5~150ml/min.

The Max Pressure and Temperature
The standard type is 32Bar and 80℃,But can customized for 1000Bar and 150℃.

Dosing and Alarm Function
The 100% Sanitary Material Lard Oil Micro Flow Meter wiht display instrument could reach the dosing and upper and Lower Alarm.

The Quality Material of 100% Sanitary Material Lard Oil Micro Flow Meter
Suction Micro Oval Flow Meter with stainless steel 316lL and Aluminum material to suitable for the medium.

Speical and Strict working condition
Suction Micro Oval Flow Meter suitable for Hydraulic system;Painting;Test Bench and more.

B.[Parameter]
Model	Flow Range	Connection
CX-M2-SS/AL	0.5~150 ml/min	G1/8 Female thread
CX-M3-SS/AL	3~300 ml/min	G1/8 Female thread
CX-M5-SS/AL	5~1000 ml/min	G1/8 Female thread
CX-M6-SS/AL	0.5~100 L/H	G1/4 Female thread
CX-M9-SS/AL	6~600 L/H	G1/4 Female thread
CX-M12-SS/AL	0.3~30 L/Min	G1/2 Female thread
CX-M25-SS/AL	0.5~100 L/Min	G1/2 Female thread
Test Bench flowmeter	1~800 ml/min	G1/8 Female thread

The liquids has been pass tested by Water Oil Chemicals Mini Flow Meter Sensor
Accuracy	The standard type is 0.5%,some special medium is 0.2%	chemicals	fluid
Temperature	-30~80℃(the max temperature is 150℃)	odorization	adbrasive adhesive
Pressure	30Bar (the max pressure 1000Bar)	isocyanate	two-component mixers
Output	The putput is pulse output	ink	waterbased liquid
Power Supply	4~26VDC	hydraulic oil	sealant
-SS series		lubracating	methylbenzene
Material	Chamber:SS316 ; Gear;SS316L ;Shaft:SS316L	methyl alcohol	medium viscosity
Medium	Suitable for various chemical liquid	offset ink	Toluene
-AL Series		resin	Pharmaceuticals
Material	Chamber:Aluminium ; Gear:Aliuminium ;Shaft:SS316L	sodium hydroxide	caustic soda
Medium	Suitable for Non-various chemical liquid	triethylene	propylene
corn oil	cocoanut oil	molasses	bhylene
palm oil	olive oil	lard oil	cotton oil
soy bean oil	rosin oil	rape seed oil	dimethylthylsufid DMS
peanut oil	fluid food	thioether	tetrahydrothiophen THT

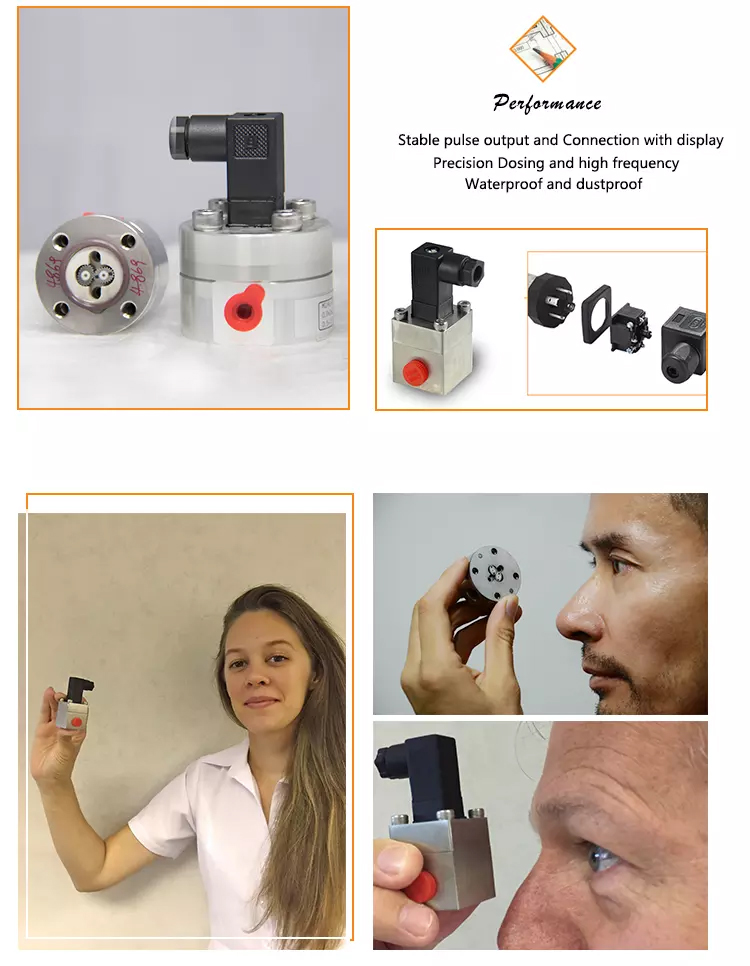

Details Images

Model / Size	M2 M3 M5	M2 M3 M5(High Pre)	M6	M9	M12	M25
A	30	30	40	47	44	56
B	62	62	72	79	79	91
C	G1/8''	G1/8''	G1/4''	G1/4''	G1/2''	G1''
D	40	40	50	60	85	100
E	M5*31	M5*31	M5*42	M5*72	M5*72	M6*61

C.[ Working Condition ]
 a.Hydraulic System,Hydraulic oil
 * The strict working condition,So the 100% Sanitary Material Lard Oil Micro Flow Meter must with longer workinglife;
 * The Hydraulic system with high pressure,Normal the pressure is more than 16Mpa;
 * Test for Hydraulic oil,The medium must is pure,the micro flow mete need provide the filter;
 * The Hydraulic system is more professional system,So the manufacture with professional engineers and Low cost aftersales.

 b. The common rail injector test bench
 * The test bench 100% Sanitary Material Lard Oil Micro Flow Meter's flow range is 0.7~400 ml/min,Our micro flowmeter is 1~800  ml/min;
 * The special flow meter need higher pulse parameter,The Model M3 with 0.07 ml/pulse;
 * In the test process,The 100% Sanitary Material Lard Oil Micro Flow Meter need provide the filter.

 C. The Painting industry and painting mechine
 * The 100% Sanitary Material Lard Oil Micro Flow Meter need higher accuracy;
 * The flowmeter need control the flow range and stable output;
 * Artifical painting waste much time and it is easy cause much cost loss;

 D.The Dispensing industry
 *  The flow meter of dispensing industry should be with higher accuracy.
 * The flow meter should be with dosing function.
 * The medium of dispensing with high viscosity and variety meduim.
 * The 100% Sanitary Material Lard Oil Micro Flow Meter should be with lower flow range.
