Batch control flow meter

Batch control flow meter, Contact email: leon@microflowmeter.com

Batch control flow meter technology in the world has been quite mature, we are more common in the country DTO, OGM series, but the measured medium if the viscosity is low, the flow is too small, the leak of domestic flowmeter error is very obvious, can not guarantee the accuracy , Second, the measured medium temperature is too high, the error will increase, and the gear will be stuck may. After long-term use of Batch control flow meter its internal gear will be corroded and worn, thus affecting the measurement accuracy . This greatly increased the user's maintenance costs.While deep base Batch control flow meter using Siemens CNC machining center, the cutting height of 0.001mm precision, small flow can be measured to 0.1m / min, the temperature up to 200C, etc., in fact, these parameters have been Reached a higher level in the world, and even surpassed Clarke, San Mai, Aobal, Kebao, and other imported gear flow meters, and the deep flowmeter used to ensure that the life of more than 8 years.

Shanghai JSN Micro Flow Meter CO.,LTD since we produce micro flow meter,mass flow meter,piston flow meter,electromagnetic flow meter,batch control flow meter,gear pump,gear metering pump,we accumulated rich experience for the flow metering equipment. The company policy is base on continuous research and development, which enables the company to manufacture high-tech and high-efficiency products. With excellent product reliability, these products are carefully selected through the careful selection of raw materials and components, during the entire machining process, each part is carefully examined, and finally assembled with skilled experience. Before commissioning, every product has appeared in front of customers with high quality.
Since May 23, 2011, Shanghai Jinshen Instrument Co., Ltd. successfully released a new batch control flow meter CX-M and G series, the liquid flowmeter range than the first in China reached more than 1: 100, and at the same time to ensure accuracy 0.5% above the flowmeter industry model.From this since the base meter has been a pioneer in flowmeter technology, but also one of the high-end flowmeter brand.The perfect technical level, excellent quality standards, innovation has been innovation Wells said. Deep base flow meter has been to provide customers with a reliable use of the experience in the past rely on the import of the era, the customer has been a headache for after-sales service, and base deep flow meter with 8 years of use of the long life, in one fell swoop cracked this situation.

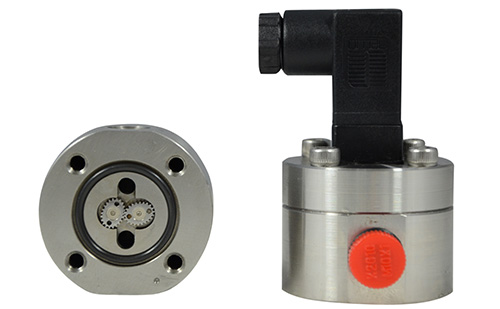

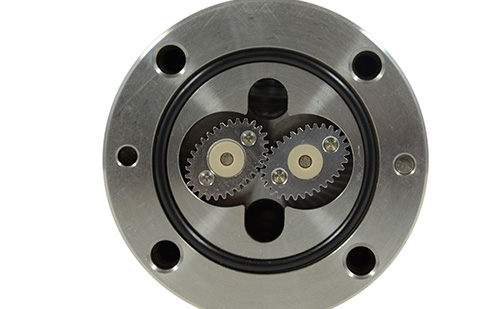

The Batch control flow meter is a volumetric flow meter. The metering chamber is composed of upper and lower end caps. The shell is formed by an oval gear rotor. The gear rotor meshes with the rotating shaft to convey the fluid. The permanent magnet arranged in the rotor is used for the detection of the rotor rotation. Two sensor holes are placed on the upper end to cover the detection sensor. A sealing ring is installed between the housing and the upper and lower end caps to prevent leakage of the measurement fluid. The base depth flowmeter is made of a material with high wear resistance so that the flowmeter Can guarantee high precision measurement within the long service life.
1、Taiwan WINNER hydraulic engineering: The company is a professional manufacturer of hydraulic screw cartridge valve international company, need quantitative AW46 hydraulic oil, minimum flow 2ml/min, commonly used flow: 2~200ml/min, maximum flow: 3000ml/ Min, it can be seen that the range ratio is as high as 1:1500, and the required pressure is 250bar. The customer has tried many products, but the effect is not ideal. Finally, our engineers used two weeks to customize the CX-M5-AL for the customer. The current operation is stable, regular return orders.
2、SAWCORLTD is a large-scale automobile painting company. The customer uses a spray paint which is a mixture of a certain percentage of resin, butyl acetate and other solvents. To control the quality, it is necessary to ensure that the flow rate is 20ml/min, less than 19ml/min or Above 21ml/min need alarm.
3、1) BYD electric vehicle: The battery of the electric vehicle needs to add electrolyte, the price of one side of the electrolyte is very expensive, and on the other hand, whether the electrolyte is added accurately has a great influence on the quality of the product, so BYD's requirements were very demanding at that time. Only 1 ~ 2ml/min, duration of only 3 seconds, fortunately I was not an expert in ultramir flow meter, with CX-M2-SS took orders.
