At present domestic Ro water flow meter structure is complex, bulky, bulky, noisy, small scale, not suitable for low viscosity liquid, the market is more common with DTO series and OGM series. For these problems the country has been unable to overcome, while the Shanghai JiShen instrument Instrument company oval gear Ro water flow meter does not have the above problems, such as the same DN25 caliber, our model CX-M25-AL, flow range: 0.5 ~ 100L / M, range of 1: 200 or higher, and weighs only 1.5KG , While the DTO-25, the flow of 600-6000L / H, range ratio of only 1:10, the weight of up to 23KG. All this due to technological breakthroughs, our chief engineer Tu workers, he is a former Siemens senior engineer, the use of equipment It is also Siemens CNC Machining Center with cutting accuracy up to 0.001mm, which ensures that we produce high quality flow meters.

Shanghai JSN Micro Flow Meter CO.,LTD is a professional intereprise in production R&D micro flow meter,ro water flow meter ,coriolis mass flow meter,electromagnetic flow meter,piston flow meter,gear flow meter,gear pump,gear metering pump, and provide technical advice, system integration, maintenance services, combined with long-term application service experience to provide customers with reliable industrial fluid online measurement solutions.Our instruments are wedily used in Chemicals, Petrochemicals, Daily Chemicals, Food, Oils, Lubricants, Vegetable Oils, Chemical Fiber Viscos, Surfactants, Bitumens, Paints, Coatings, Inks, Resins, Polymers, Glues, Adhesives etc industry. We have the spirit of "integrity, enthusiasm, professional," the purpose and dedication to provide users with first-class products and superb service!
As a well-known flowmeter with a domestic sales well beyond foreign brands, it has accumulated sales of more than 100,000 units as long as it requires a mirco flow meter You can always see the shadow of the Ro water flow meter at the base, all thanks to the painstaking research done by former Siemens engineers and the fact that Shanghai Qishen Instrument Co., Ltd. also uses Siemens CNC machining centers to cut Accuracy of up to 0.001mm, treats each base depth flowmeter as if it were artwork.

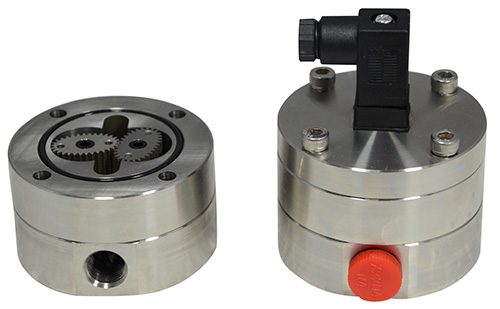

The Ro water flow meter consists of a metering box and a pair of gears mounted in the metering box. It forms a sealed initial moon cavity with the upper and lower cover plates as a unit of calculation of the primary displacement. When the measured liquid enters the flow meter through the pipe, The pressure difference generated at the outlet pushes a pair of gears to continuously rotate, and the liquid measured by the initial cavity is continuously delivered to the outlet. The product of the number of rotations of the gear and four times of each displacement is the measured liquid flow rate. The total flowmeter is mainly composed of a housing, a counter, a gear and a coupling (magnetic coupling and axial coupling).

1、Luoyang Hydraulic Valve Measurement and Control: We know that hydraulic valves, hydraulic pumps, and hydraulic cylinders have a large turndown ratio, and need to detect hydraulic leakage in the test. Some of them require a hydraulic flowmeter with a 1:1000 ratio, and the customer found us at that time. It is to test the leakage of the hydraulic valve, test No. 32 hydraulic oil, leakage amount is 5ml/min
2、Coperion Extruder: More than 75% of all new plastic materials in the world are in Coperion's test labs. This industry knows that most high-end odorless plastic particles are imported from abroad. In the production process, a certain proportion of water needs to be injected, more or less, and the plastic particles will have an unpleasant odor. According to different models and production, Coperion requires us to provide the ability to measure the water flow rate at 10~. 50ml/min flowmeter, so we CX-M2-SS flow in 0.5 ~ 150ml/min, and the material is a sanitary SS316L, so fully meet the requirements.
