email: porter@microflowmeter.com  Shanghai JSNMicro Flow Meter CO.,LTD. is a family company and we are specialized in thereaserch and production of flow meters. These are our main products: mirco flow meter,oval gear flow meter ,coriolismass flow meter,electromagnetic flow meter,piston flow meter,spur gear flowmeter,gear pump,gear metering pump. In order to guarantee the after-sellservices, we cancled our agency and keep close contact with our client andmarket of flow meters. Our flow meter has reached the first class quality inthe world. Due to our advanced technology, we can customize for our clientaccording to different application and we can guarantee the fast delivery timeand it is usually within 2 weeks. Our applications include Metering technology,hydraulic or monitoring technology, filling, gluing, or mixing of various industrialsectors ,polyurethanes, chemicals, pharmaceuticals, paints and coatings,processing plants in the hydraulic and automotive industries, and Two-componenttechnology.



glue mini flow measurement

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

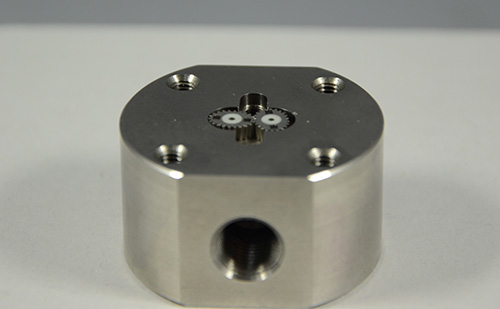

Oval gear flow meter, belonging to a type of volumetric flowmeter,cylindrical shape, with import and export, according to the media with a customfilter. Small size, light weight, easy installation, compact structure, withouttoo much maintenance; other The range ratio is very wide, generally more than1: 100, the minimum flow rate can be measured to 0.3ml / min; and thelinearization accuracy can reach 0.5% FS of full scale, so the use is very wideand can be used for measuring, regulating, controlling and distributing Highand low viscosity, or corrosive liquids, and there are health-type,explosion-proof for a special environment.



glue mini flow measurement

Ovalgear flow meter Through the rotation of the gear cavity, through a series ofdeceleration and speed ratio adjustment mechanism, directly connected with theindicator on the instrument panel, and through the mechanical counter for thetotal display. Or remote display is mainly through The decelerated gear drivesthe permanent magnet to rotate so that the contacts of the spring relay (Hallsensor) are closed or opened synchronously at the same rotation frequency asthe permanent magnet, thereby sending one electric pulse to the other displayinstrument.



glue mini flow measurement

Technicaldata of Gear type flow meter

Model	K-factor	Minimum  flow	Flow  range	Accuracy
G0.025	0.025ml	0.001L/Min	0.008~2L/Min	0.5%
G0.04	0.04ml	0.004L/Min	0.2~4  L/min	0.5%
G0.1	0.4ml	0.008L/Min	0.01~8L/min	0.5%
G0.2	0.245ml	0.01L/Min	0.16~16  L/min	0.5%
G0.4	0.4ml	0.01L/Min	0.16~16  L/min	0.5%
G1	1.036ml	0.02L/Min	0.4~80  L/min	0.5%

What are the precautions for the gear flow meter?

1) In the field installation, it should be noted that the direction of the arrow on the flow meter housing is consistent with the flow direction of the fluid;

2) The flowmeter is installed on the same pipe with the same nominal internal diameter as the inlet and outlet fittings. When the pipe is connected with the flowmeter, the seal should not protrude into the fluid;

3) The fluid to be measured shall be filled with the metering room of the flowmeter and the connecting pipes before and after it. If the fluid to be measured contains gas, a gas separator shall be installed before the flowmeter and the filter;
