Transfer pump for nitrocellulose suspension

Today, I received a customer's inquiry about what kind of transfer pump is suitable for transferring nitrocellulose suspension

I am looking for a pump for transferring nitrocellulose suspension (NC), the specific specifications are as follows.

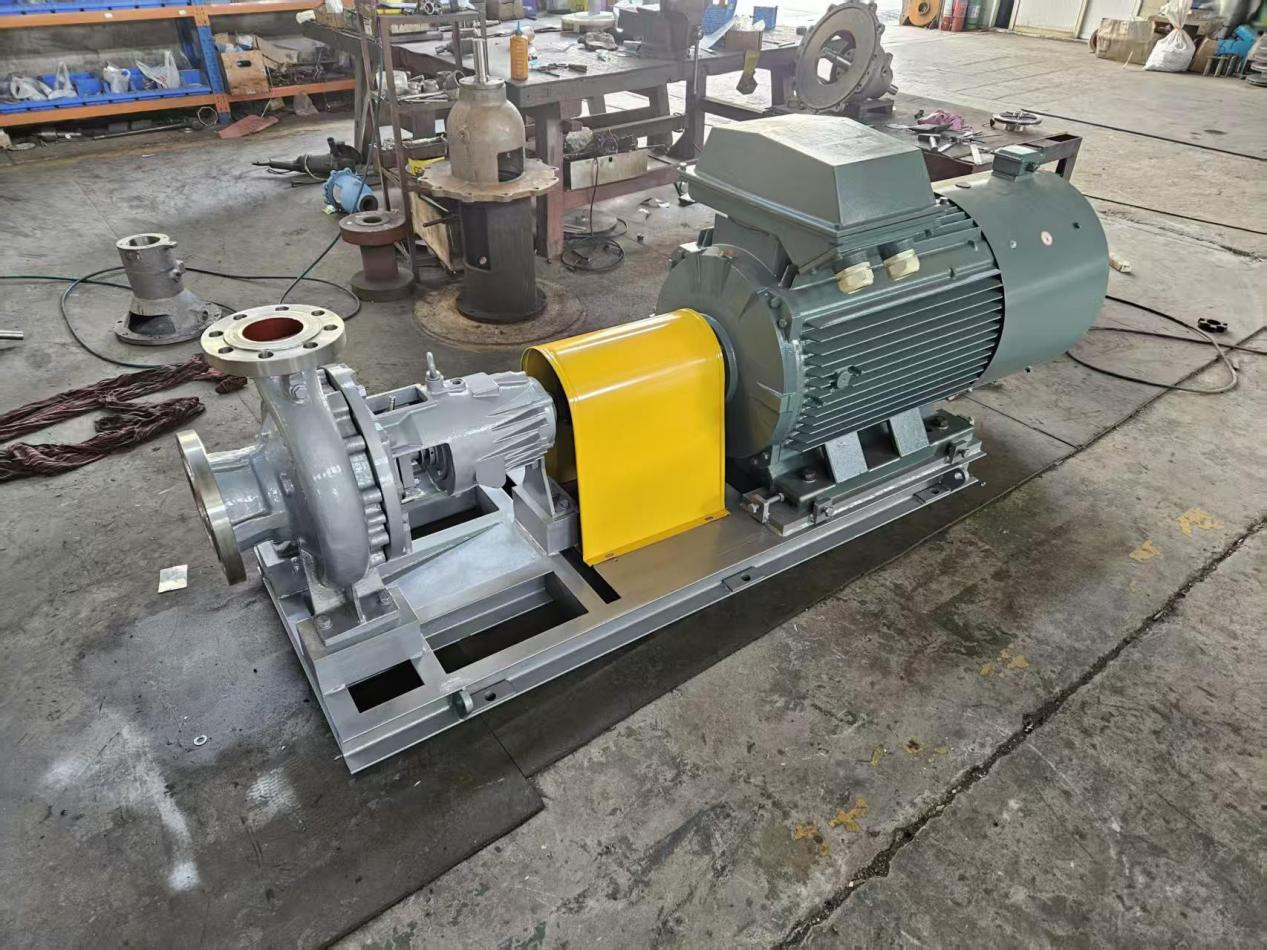

Complete set of centrifugal pump with motor and base plate, as shown below:

Position: horizontal

Pressure: 1750 kg/m3

Temperature: 50°C

Flow: 35 m3/h

Height: 50 m

Casing material: SS1.4408

Semi-open impeller

Impeller material: SS1.4408

Shaft material: SS1.4408

Sealing stuffing box

Shaft diameter/shaft diameter ratio: 100/80 mm

Bearing seat material: GG25

Flexible coupling between pump and motor

Motor: 380V-50Hz - Class F - Acid-proof coating - IP: 55

Quantity: 3 sets

Weight and dimensions of product plus outer packaging are required

English manual is required

Installation drawing

Physical picture

After analysis by the technician, the following two pumps were recommended for him

The medium is OK, ask the customer whether he wants slow speed or high speed

1. Slow speed

ZA50-450

Medium: nitrocellulose suspension (NC)

Flow range: 35m³/h

Temperature: 50 degrees

Lift 50 meters

Flange connection

Inlet and outlet size: DN100/DN50

Speed 1450

Pump head material: 316L

Motor 15kw

Power supply: 380V 50hz

Diaphragm coupling

Packing seal

2. High speed

CZ50-200B

Medium: nitrocellulose suspension (NC)

Flow range: 35m³/h

Temperature: 50 degrees

Lift 50 meters

Flange connection

Inlet and outlet size: 80/50

Speed 2900

Pump head material: 316L

Motor 11kw

Power supply: 380V 50hz

Diaphragm coupling

Packing seal
