Micro Gear Flow Meter Chemical Flow Meter

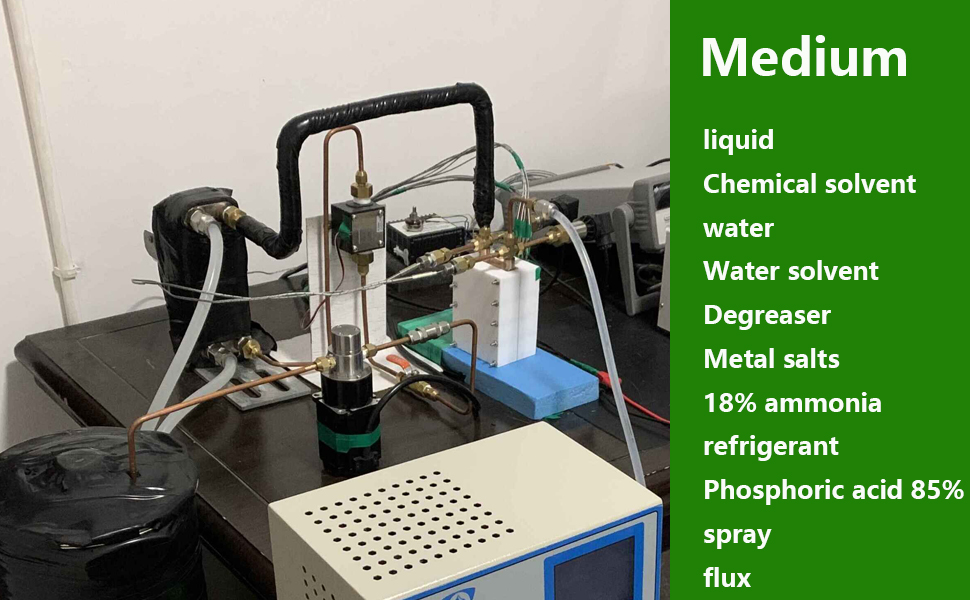

P series micro gear flow meter chemical flow meter produced by Shanghai Cixi Instrument Co., Ltd. are all made of corrosion-resistant materials, resistant to acids, alkalis and various solutions, and are suitable

for accurate metering of various chemical medium and low viscosity that cannot be in contact with metals such as stainless steel. Used in the chemical industry or reactor flow monitoring.

Small vibration noise during working, convenient installation.

sales01@cxflowmeter.com

sales01@cxflowmeter.com

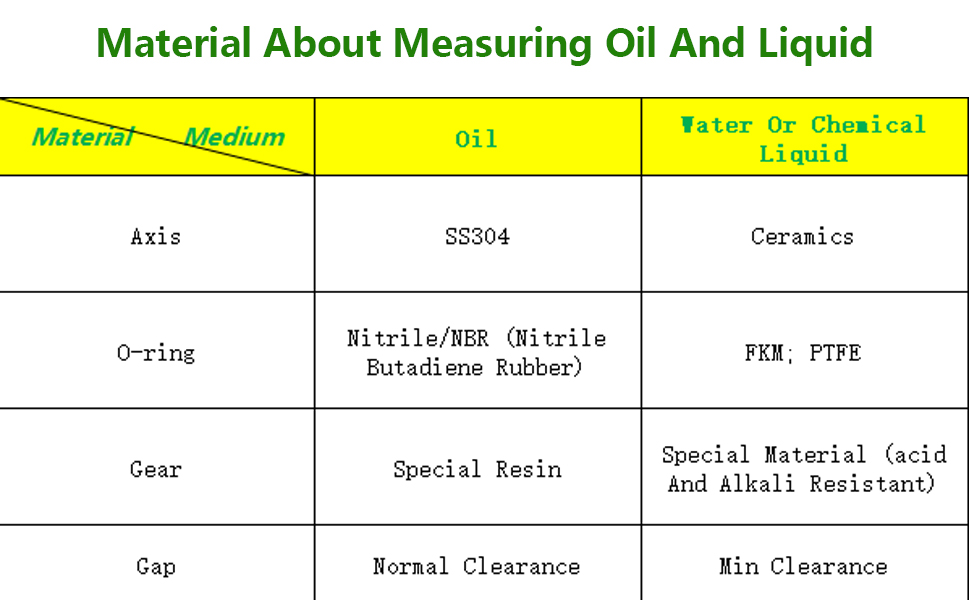

According to different media, the P series flowmeters have produced two types of flowmeters: one is used to measure oil, which is slightly cheaper, and the other is used to measure water,

liquid, chemical liquids, including corrosive liquids flow meter, this price is a bit more expensive, but the overall is a very cost-effective chemical flow meter.

measuring water,liquid

Shaft: Ceramic

O-ring: FKM; PTFE

Gear: special material, acid and alkali resistan

Clearance: Min clearance

for oil measuring

Shaft: SS304

O-ring: Nitrile/NBR (nitrile butadiene rubber)

Gear: Special resin

Clearance: normal clearance

sales01@cxflowmeter.com

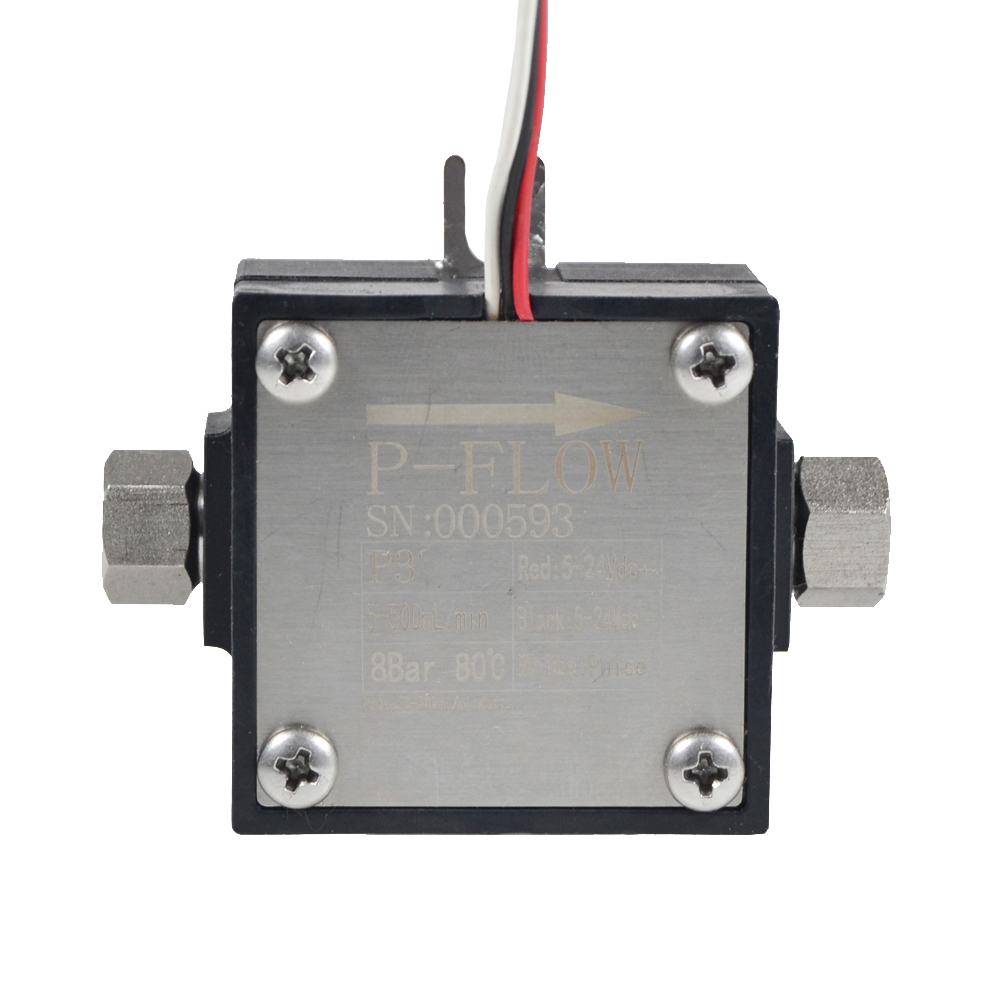

P series gear flow meter

Model: CX-P1 (PS1)

K factor: 0.055 ml/P

Flow range: 1~100 mL/min

Gear material:  PPS

Housing material: PPS (PPS+SS316L)

sales01@cxflowmeter.com

Model: CX-P2 (PS2)

K factor: 0.175 ml/P

Flow range: 3~300 mL/min

Gear material:  PPS

Housing material: PPS (PPS+SS316L)

Model: CX-P3 (PS3)

K factor: 0.25 ml/P

Flow range: 5~500 mL/min

Gear material: PPS

Housing material: PPS (PPS+SS316L)

Model: CX-P4 (PS4)

K factor: 0.5 ml/P

Flow range: 10~1000 mL/min

Gear material: PPS

Housing material: PPS (PPS+SS316L)

Model: CX-P5 (PS5)

K factor: 2.5 ml/P

Flow range: 50~5000 mL/min

Gear material: PPS

Housing material: PPS (PPS+SS316L)

Product Characteristics

Power supply: DC5~26V

Measuring range: 1:100

Accuracy: 1~0.5 level

Temperature: -30~80℃

Pressure resistance: 8bar

Output: Square wave pulse (Hall sensor)

sales01@cxflowmeter.com

Can be integrated display or with DC8S remote digital display.4-20mA analog output,

Modbus RTU 485 communication, cumulative alarm, instantaneous alarm, etc.

This P series flowmeter is made of corrosion-resistant materials, which can be used to measure the flow of all chemical liquids, acid and alkali reagents, with high accuracy and wide flow range. For more information, please consult winny: sales01@cxflowmeter.com
