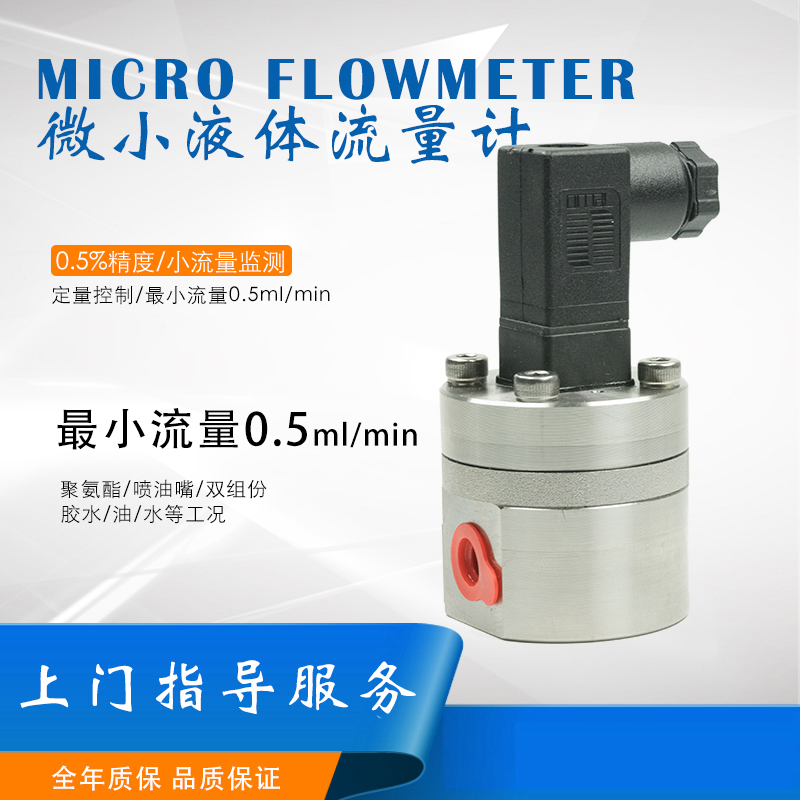

Diesel engine micro flowmeter

The micro-flow meter of diesel engine is suitable for cars of all types and specifications, and it is also used to carry out the oil metering verification under the high car fuel tank (the normal operation can be carried out when the liquid level is higher than 50cm above the flow meter).All kinds of vehicles with a certain space above or on the side of the automobile fuel tank, such as various types and specifications of freight trucks, construction machinery, tractors, etc.

Application:

Cars of all types and specifications should also be installed under the high car tank to carry out oil metering verification (the normal operation can be carried out when the liquid level is 50 centimeters above the flow meter).All kinds of vehicles with a certain space above or on the side of the automobile fuel tank, such as various types and specifications of freight trucks, construction machinery, tractors, etc.

Diesel engine micro flowmeter

Principle:

After the oil gun is inserted into the flowmeter, the oil pressure difference from the oil gun is used to promote the piston rod rotation inside the flowmeter. The rotation of the piston rod is not only used for correct metrological verification, but also for pushing the magnetic steel components.Magnetic steel assembly drives electronic counter display.Electronic counter has two groups of synchronous display, in which a group of seven digits after the accumulation of seven bit word wheel automatically reset and then start, a group of four digits can be manually reset at any time, the electronic counter does not enter oil and rain.

Material:

All the electronic counters are made of copper except the engineering plastics.Pipeline for Φ 25 mm water pipe parts (user), if the installation of the temperature is too high area allows an aluminum plastic pipe connection, factory with the flowmeter with inlet side, take oil mouth (build) a head, install fixture 8, agent for the sale and so on.

Common problems of micro-flow meter for diesel engine:

1.According to the flow timing, the oil inlet of the flow meter should not be lower than the tank inlet of the automobile.

2.According to the installation of the original oil cover removed without, replaced by the factory equipped with rubber cover.Around the rubber cover to the bottom of the car tank mouth, and then clamp, rubber cover is a small hole in the middle, in order to give oil when the gas used, do not plug when giving oil.

3.The connection between the flowmeter riser and the automobile fuel tank can be made by plastic pipe. If it is not long enough, please go to the local store to buy it.The two clamp screws must be tightened.If the middle plastic line is longer, the middle should be fixed frame, in case the vehicle long time vibration and fall.

4.When giving oil, the staff should be prompted to insert the oil gun slightly to avoid oil overflow.

5.Flowmeters should be installed away from the use of fire, security and easy to see the oil on the place.

6.You must be informed of the tank opening when ordering. What is the diameter in centimeters?In order to give you a suitable oil cap.
