What types of steam vortex flow meter

The vortex flow meter is widely used in the flow measurement level, and it also fully plays a key role in accurately measuring steam. So how

does the vortex flowmeter measure steam accurately? Let's learn about three ways vortex flowmeters can accurately measure steam.

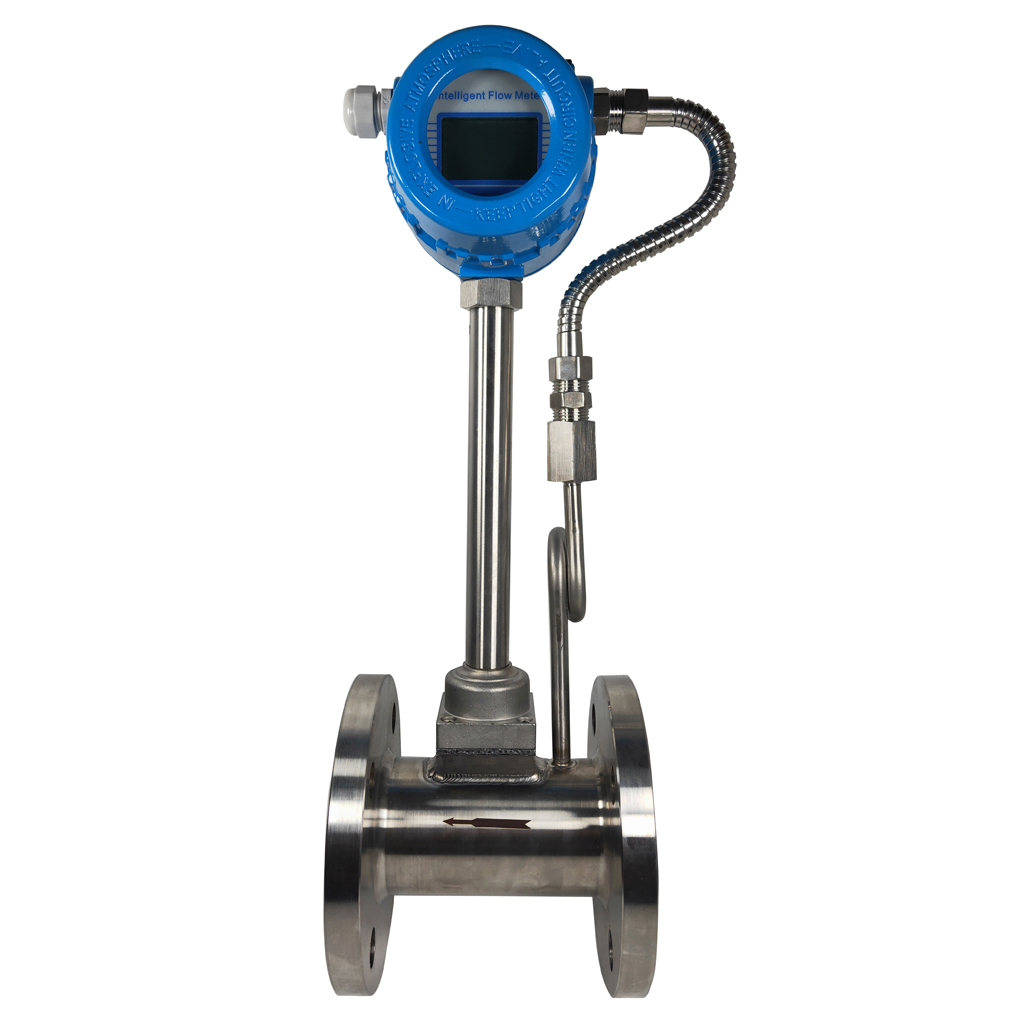

Vortex flow meter with temperature and pressure compensation. It is a very common indirect vortex mass flowmeter, which indirectly

calculates the relative density according to the accurate measurement of the temperature and working pressure in the whole process to

calculate the mass of the steam.

Air resistance vortex flow meter. This type of vortex flowmeter is not widely used. It is mainly based on the relationship between the mass

flow size of the material and the compressive strength of the vortex, and the vortex compressive strength is measured to immediately

calculate the mass of the material.

Differential pressure vortex mass flowmeter. Accurate measurement is carried out according to the pressure difference between the two

pressure-taking holes on special parts of the upper, middle and lower reaches of the generator, and this gas pressure data signal is affected

by the distance between the pressure-taking holes, so it is necessary to select a suitable pressure-taking hole according to the test. and

make the line of the two pressure-taking holes and the line of the generating body in the same plan view.
