Lubricating oil micro flow meter

Lubricating oil micro flow meter, Contact email: sales6@microflowmeter.com

At present domestic Lubricating oil micro flow meter structure is complex, bulky, bulky, noisy, small scale, not suitable for low viscosity liquid, the market is more common with DTO series and OGM series. For these problems the country has been unable to overcome, while the Shanghai JiShen instrument Instrument company oval gear Lubricating oil micro flow meter does not have the above problems, such as the same DN25 caliber, our model CX-M25-AL, flow range: 0.5 ~ 100L / M, range of 1: 200 or higher, and weighs only 1.5KG , While the DTO-25, the flow of 600-6000L / H, range ratio of only 1:10, the weight of up to 23KG. All this due to technological breakthroughs, our chief engineer Tu workers, he is a former Siemens senior engineer, the use of equipment It is also Siemens CNC Machining Center with cutting accuracy up to 0.001mm, which ensures that we produce high quality flow meters.

Shanghai JSN Micro Flow Meter CO.,LTD has a complete planning, design, research and development, manufacturing, sales, service system, is committed to providing high-quality,high-performance micro flowmeters,Lubricating oil micro flow meter ,electromagnetic flow meter,mass flow meter,piston flow meter,gear flow meter,gear pump,gear metering pump for professional channel customers and end customers at home and abroad. Since the 1980s, it has relied on a strong technical R&D team to focus on the field of flow meter measurement, and developed ultra-miniature, high-precision, high-frequency, high-pressure, and large-scale flow metering equipment. Today, there are more than 500,000 units (sets) products are serving all corners of the country and are widely used in polyurethane, dispensing, hydraulic, odor, petrochemical, power, military, aerospace, scientific research, nuclear industry, cement, metallurgy, steel and other industries.

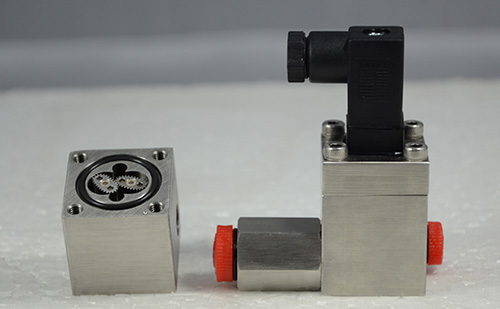

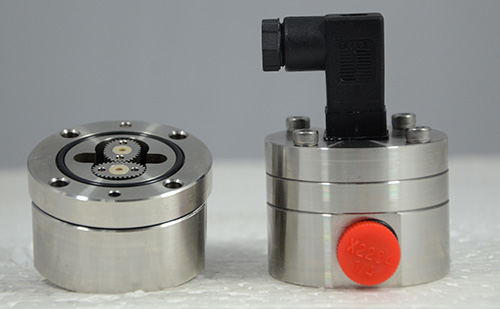

Lubricating oil micro flow meter, belonging to a type of volumetric flowmeter, cylindrical shape, with import and export, according to the media with a custom filter. Small size, light weight, easy installation, compact structure, without too much maintenance; other The range ratio is very wide, generally more than 1: 100, the minimum flow rate can be measured to 0.3ml / min; and the linearization accuracy can reach 0.5% FS of full scale, so the use is very wide and can be used for measuring, regulating, controlling and distributing High and low viscosity, or corrosive liquids, and there are health-type, explosion-proof for a special environment.

When the liquid to be measured enters the Lubricating oil micro flow meter through the pipe, a pair of gears are continuously rotated due to the pressure difference between the inlet and the outlet, and the liquid measured by the initial cavity is continuously conveyed to the outlet. The number of rotations of the gear is The product of four times the displacement is the total amount of the measured liquid flow. Therefore, we can see from the measurement principle of the mirco flow meter that it depends on the indenter of the measured medium to drive the elliptic gear to rotate and measure. , has nothing to do with the fluid flow state.

1、Coperion Extruder: More than 75% of all new plastic materials in the world are in Coperion's test labs. This industry knows that most high-end odorless plastic particles are imported from abroad. In the production process, a certain proportion of water needs to be injected, more or less, and the plastic particles will have an unpleasant odor. According to different models and production, Coperion requires us to provide the ability to measure the water flow rate at 10~. 50ml/min flowmeter, so we CX-M2-SS flow in 0.5 ~ 150ml/min, and the material is a sanitary SS316L, so fully meet the requirements.

2、Taiwan WINNER hydraulic engineering: The company is a professional manufacturer of hydraulic screw cartridge valve international company, need quantitative AW46 hydraulic oil, minimum flow 2ml/min, commonly used flow: 2~200ml/min, maximum flow: 3000ml/ Min, it can be seen that the range ratio is as high as 1:1500, and the required pressure is 250bar. The customer has tried many products, but the effect is not ideal. Finally, our engineers used two weeks to customize the CX-M5-AL for the customer. The current operation is stable, regular return orders.

3、Tai'an injector nozzle test bench manufacturer: Tai'an is the production base of China's common rail injector test bench. It has produced more than half of China's injector test benches. Previously only KRACHT, OVAL, etc. were selected. Most of us use our CX-M5-AL (5~1000ml/min), the annual purchasing volume exceeds 500 units, and we have specially developed a test bed for the test bench: CX-M3-CRI: 1~400ml/min is used to adapt Most models.
