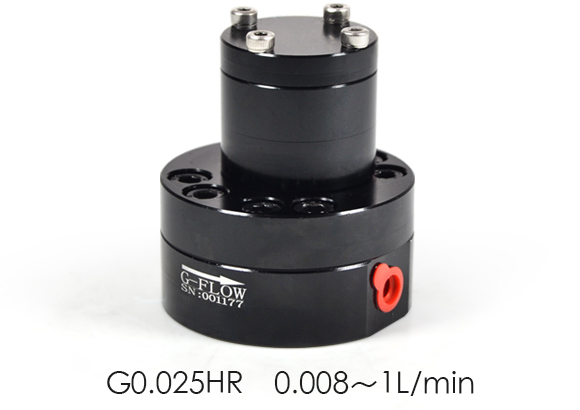

High resolution gear flow meter

Function introduction Function introduction

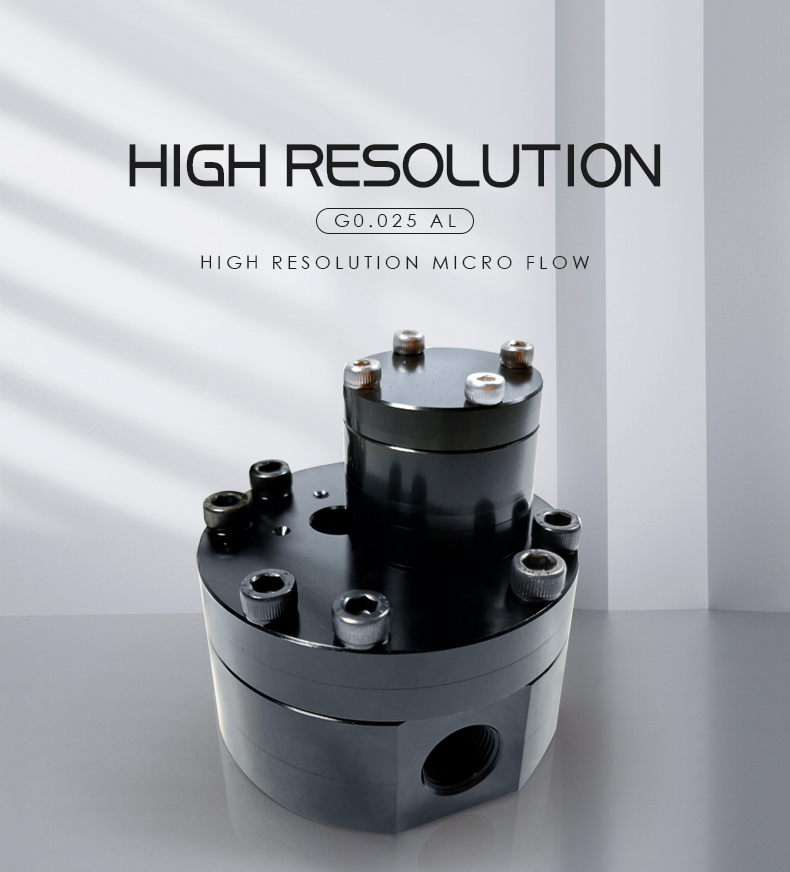

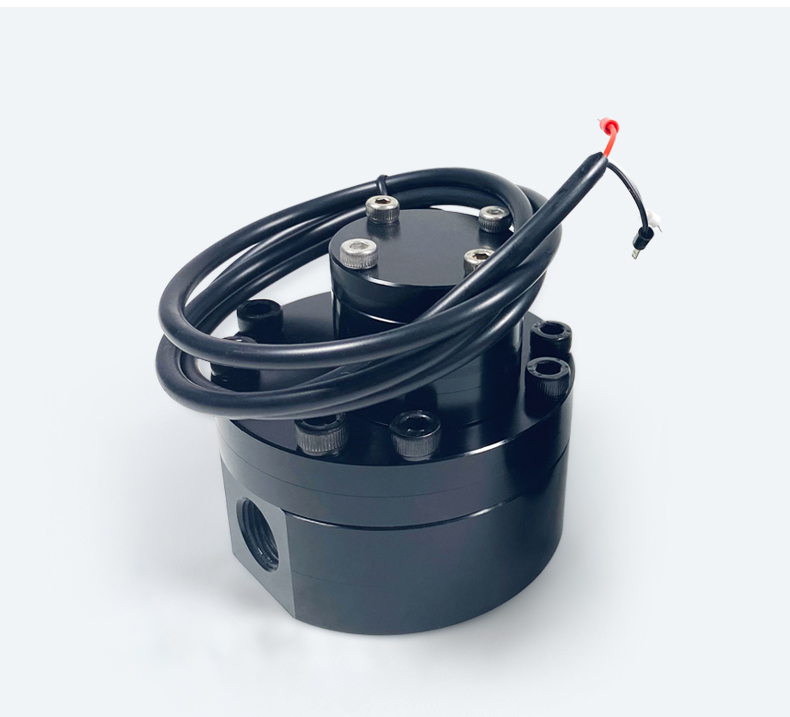

G0.025 AL High resolution micro flow

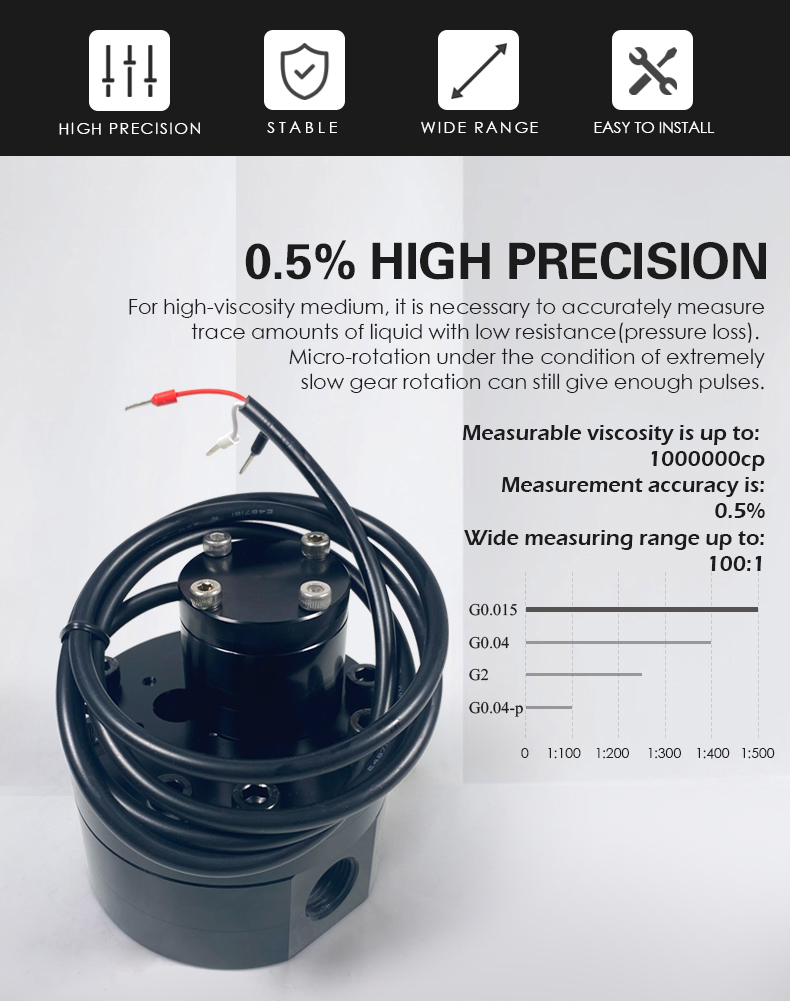

0.5% high precision For high-viscosity medium, it is necessary to accurately measure trace amounts of liquid with low resistance(pressure loss). Micro-rotation under the condition of extremely slow gear rotation can still give enough pulses. Measurable viscosity is up to: 1000000cp Measurement accuracy is: 0.5% Wide measuring range up to: 100:1

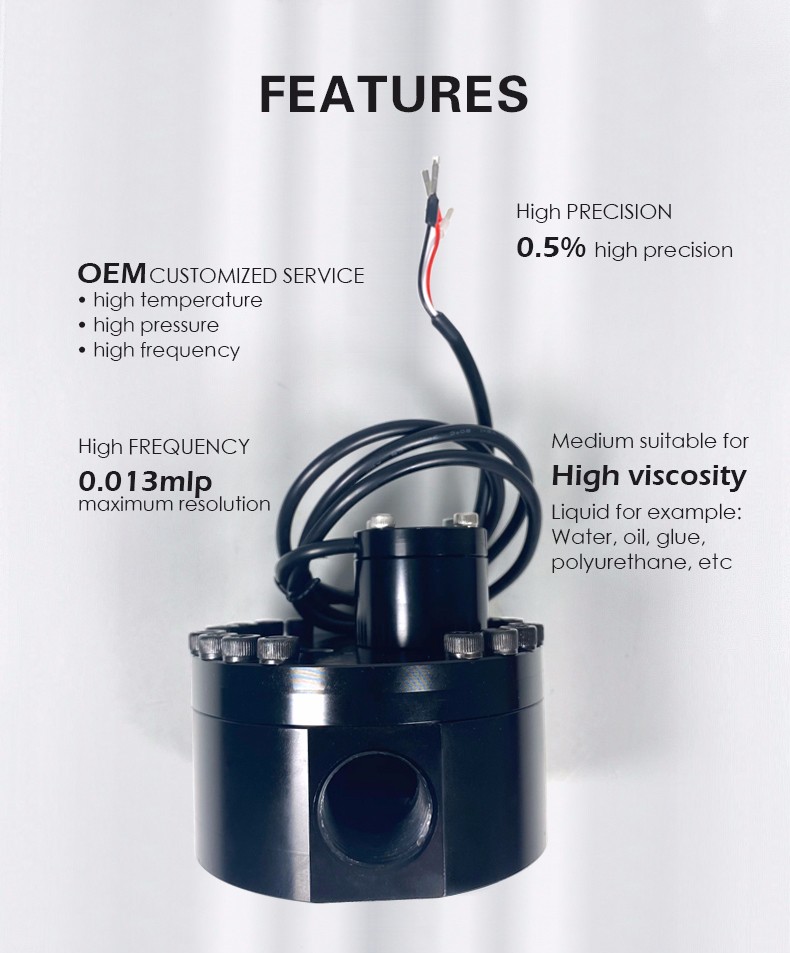

OEM CUSTOMIZED SERVICE • high temperature • high pressure • high frequency High PRECISION 0.5% high precision High FREQUENCY 0.013mlp maximum resolution Medium suitable for High viscosity Liquid for example: Water, oil, glue, polyurethane, etc

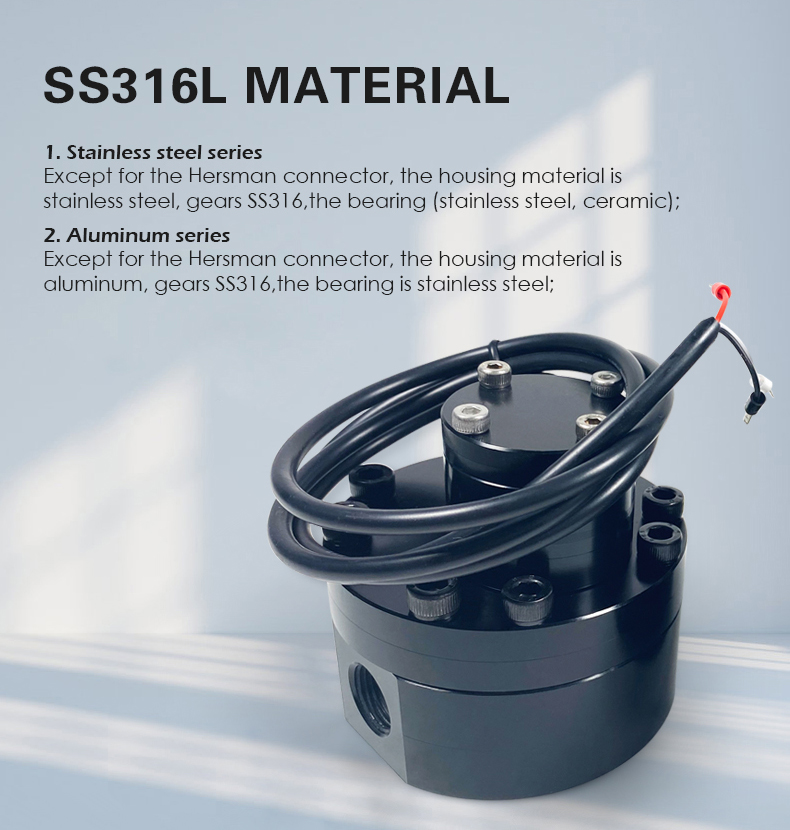

1. Stainless steel series Except for the Hersman connector, the housing material is stainless steel, gears SS316,the bearing (stainless steel, ceramic); 2. Aluminum series Except for the Hersman connector, the housing material is aluminum, gears SS316,the bearing is stainless steel;

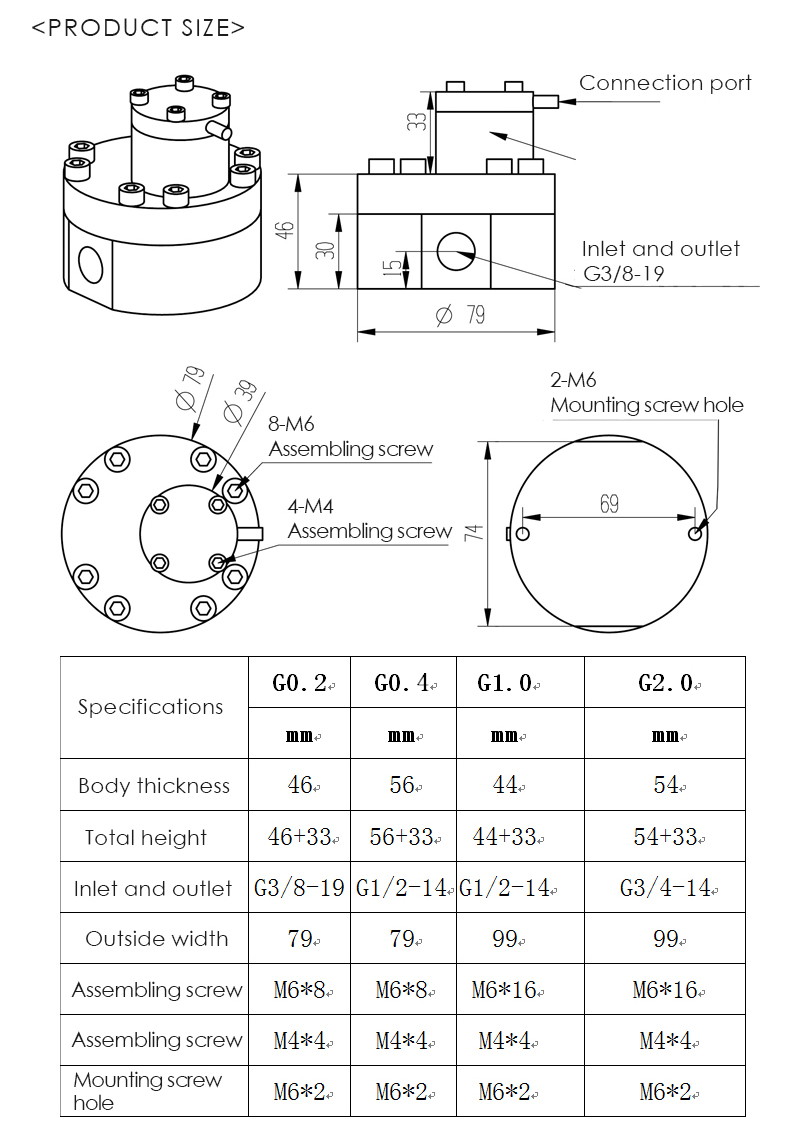

G0.2 G0.1 G1.0 G2.0 Specifications Body thickness Total height lnlet and outlet Outside width Assembling screw Assembling screw Mounting sarewhole

Capacitor wax injection High voltage test Chemical purification
