oval gear flow meter used on alcohol chloroform hydrochloric acid

sales01@cxflowmeter.com

Recently received a consultation from a customer, he needs to use the high viscosity micro flow meter to measure the mixed polymer

containing alcohol, chloroform, hydrochloric acid and other substances. Since the viscosity of the medium will increase at low

temperature and even solidify, the customer chooses to use a hot water pad to heat the flow meter, so that it can ensure the normal

circulation of the medium in the flow meter.

The customer provides the following parameters

A:

Medium: Chloroform-containing polymer solution

Need to be resistant to chloroform and hydrochloric acid

Flow: 2~10ml/min

Polymer viscosity: 700 Poise (70000cp)

Temperature: 57~63℃

Pressure: < 10 bar

Output: 4~20mA

Explosion-proof

the

b.

Medium: bore-liquid (alcohol components such as methanol, ethanol, chloroform, trichloroethylene, etc.)

Need to be resistant to chloroform and hydrochloric acid

Flow: max 10ml/min

Viscosity: 0.5~1.8CP

Temperature: 20 - 60℃

Pressure: < 4 bar

Output: 4~20mA

Explosion-proof

the

c.

Medium: Chloroform-containing polymer solution

Need to be resistant to chloroform and hydrochloric acid

Flow: 200l/h

Viscosity of polymer solution: 70000 ~110000cp

Temperature: 35 ~ 65℃

Pressure: < 5 bar

Output: 4~20mA

Explosion-proof

We suggest that customer use remote display. Flow meter with DC8S remote digital display.

the

The flowmeter is explosion-proof with Hessman joint glue filling.

Flowmeters with filling glue explosion-proof, customer need to prepare an explosion-proof box for digital display, so that the whole

explosion-proof.

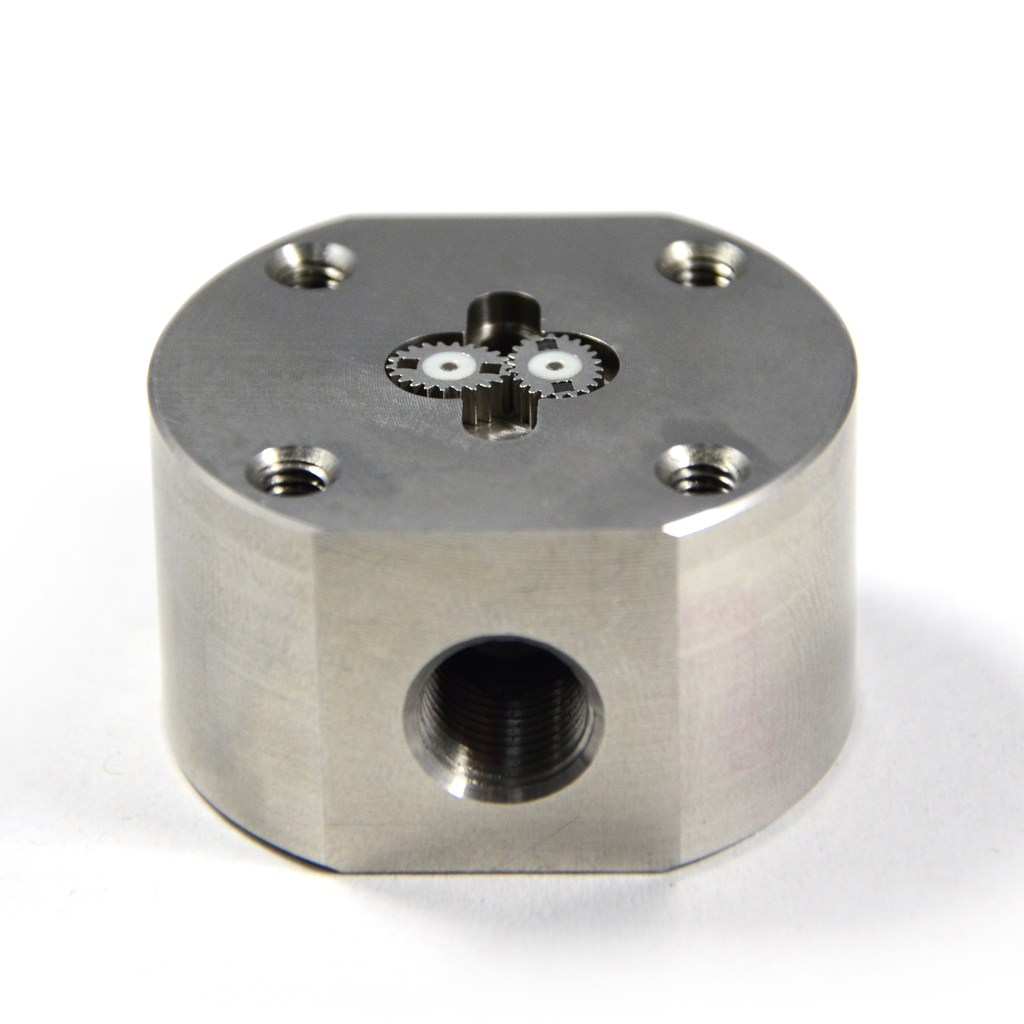

According to the parameters provided by the customer, we recommend our low flow sensor micro oval gear flow meter G0.015, M5.2SS

and G0.4SS to customer.
