Digital flowmeter

Digital flowmeter, Contact email: leon@microflowmeter.com

Digital flowmeter is widely used in petroleum, chemical and hydraulic industries due to its advantages of high precision, simple installation, stable performance and good repeatability.However, the Digital flowmeter that can be produced domestically can only be applied due to the impatience of high pressure In the low pressure occasion, the high pressure measurement occasion can only rely on the foreign imported high pressure flowmeter.Therefore, the research of the high pressure Digital flowmeter will help to expand the domestic application of the Digital flowmeter and promote the development of the domestic flow measurement. Deep instrumentation independent research and development of the Digital flowmeter pressure up to 1000bar, it can be said has reached a higher level in the world, and obtain measurement certificate.

Shanghai JSN Micro Flow Meter CO.,LTD. is a family company and we are specialized in the reaserch and production of flow meters. These are our main products: mirco flow meter,digital flowmeter ,coriolis mass flow meter,electromagnetic flow meter,piston flow meter,spur gear flow meter,gear pump,gear metering pump. In order to guarantee the after-sell services, we cancled our agency and keep close contact with our client and market of flow meters. Our flow meter has reached the first class quality in the world. Due to our advanced technology, we can customize for our client according to different application and we can guarantee the fast delivery time and it is usually within 2 weeks. Our applications include Metering technology, hydraulic or monitoring technology, filling, gluing, or mixing of various industrial sectors ,polyurethanes, chemicals, pharmaceuticals, paints and coatings, processing plants in the hydraulic and automotive industries, and Two-component technology.
Digital flowmeter, belonging to a type of volumetric flowmeter, cylindrical shape, with import and export, according to the media with a custom filter. Small size, light weight, easy installation, compact structure, without too much maintenance; other The range ratio is very wide, generally more than 1: 100, the minimum flow rate can be measured to 0.3ml / min; and the linearization accuracy can reach 0.5% FS of full scale, so the use is very wide and can be used for measuring, regulating, controlling and distributing High and low viscosity, or corrosive liquids, and there are health-type, explosion-proof for a special environment.

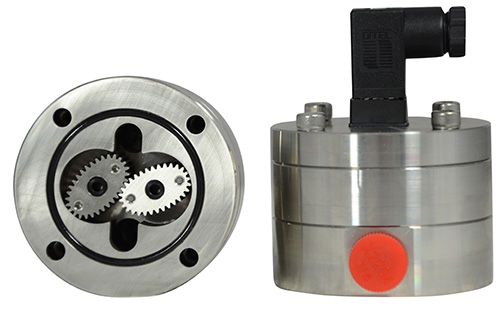

The measuring part of Digital flowmeter mainly consists of two intermeshing gears and their housings, and the gear generates the acting moment to make it rotate under the pressure difference of the measured medium. The gears alternately rotate with one another to drive the measured The medium in order to half the volume of the unit from import to export row by row, so the mirco flow meter discharge per revolution measured volume of medium is half the volume of 4 times the volume flow through the micro-volume flow meter Q Can be figured out

1、Luoyang Hydraulic Valve Measurement and Control: We know that hydraulic valves, hydraulic pumps, and hydraulic cylinders have a large turndown ratio, and need to detect hydraulic leakage in the test. Some of them require a hydraulic flowmeter with a 1:1000 ratio, and the customer found us at that time. It is to test the leakage of the hydraulic valve, test No. 32 hydraulic oil, leakage amount is 5ml/min
2、US TOYOTA robot factory: TOYOTA's confidentiality is as strict as that of the product. The following are information that Toyota confirms and can disclose. Toyota purchased our flowmeter for the robot arm at the time, and the medium was petroleum (translated literally Petroleum) minimum flow: 2.5cc/min, common flow: 2.5cc/min, maximum flow: 20cc/min, viscosity is 4.3cp, there are two special requirements, 1) product quality must be light, because the robot arm one day Thousands of swings back and forth. 2) Because the arm swings indefinitely, the flowmeter must be universal. These two points we happen to have proprietary technology can satisfy.

Digital flowmeter, Contact email: leon@microflowmeter.com
