Sulfuric acid flow meter

Sulfuric acid flow meter, Contact email: leon@microflowmeter.com

Sulfuric acid flow meter is widely used in petroleum, chemical and hydraulic industries due to its advantages of high precision, simple installation, stable performance and good repeatability.However, the Sulfuric acid flow meter that can be produced domestically can only be applied due to the impatience of high pressure In the low pressure occasion, the high pressure measurement occasion can only rely on the foreign imported high pressure flowmeter.Therefore, the research of the high pressure Sulfuric acid flow meter will help to expand the domestic application of the Sulfuric acid flow meter and promote the development of the domestic flow measurement. Deep instrumentation independent research and development of the Sulfuric acid flow meter pressure up to 1000bar, it can be said has reached a higher level in the world, and obtain measurement certificate.

Our company specialized in producing:super micro flow meter,sulfuric acid flow meter ,mass flow meter,spur gear flow meter,gera pump,gear metering pump etc. The business covers the whole country and 70% of the instruments are exported to over 80 foreign countries. The company has always been based on sincerity and pragmatic, harmonious and inclusive as the company philosophy, committed to providing users with high-quality, high-precision flow meters. Quality and service is our company's commitment to users The company has served for many years in the major oil fields, petrochemical groups, chemical companies, etc., has a wealth of practical experience. Flowmeter contains a number of technical patents. The technology has reached the national advanced level. And passed the China Quality Certification Center (CQC) ISO9001: 2008 certification.
The CX-M and G-series mirco flow meters are the world's new volumetric flowmeters introduced by BASF in 2011. Since its establishment, the CX-M sulfuric acid flow meter and the G-series mirco flow meters have been selling well in the market for more than 100,000 units a year since they were sold. The third generation launched in 2017, with more than 90% accuracy and stability, won the certification of the National Bureau of Metrology. The quality and reliability of Shanghai JiShen instruments need not worry. According to the statistics of China Instrument Association, Deep flow meter reliability has always been ranked in the top 3, especially in the long-term statistics failure rate is far below the industry average, deep advocate "the best after-sales service is no service", but also achieved a continuous three years without quality complaints .

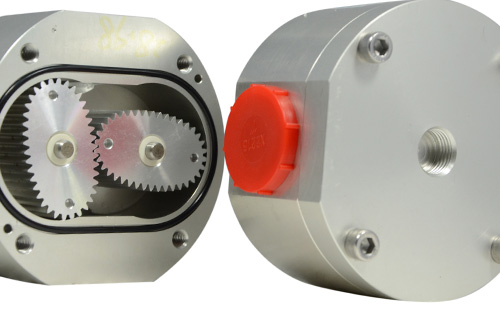

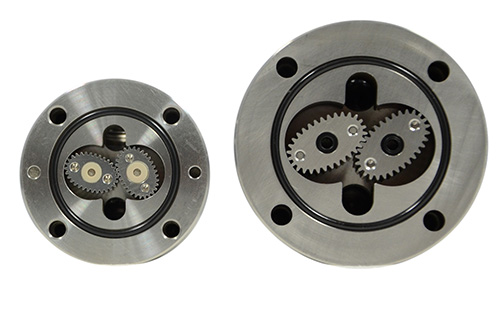

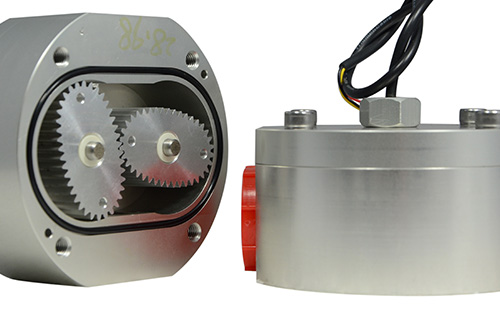

The CX-M and G series gear flow meters consist of a flow transmitter and a display. The sulfuric acid flow meter metering chamber of the flow transmitter has a pair of elliptical or circular measuring gears. The gears and the measuring chamber form several known volumes. The cavity acts as a metering unit. Under the influence of the differential pressure between the inlet and outlet, the gear is driven to rotate, and the imported liquid is continuously metered into the outlet after measuring the metering chamber. At the same time, the sensor generates a corresponding electrical signal and sends it to the display section. After partial treatment, the instantaneous flow and cumulative flow of the liquid can be displayed.

1、McDonald's thermoking cold chain transporter: Remotely monitor the fuel consumption of cold storage and transport vehicle engines via GPS. The cold storage engine uses our CX-M6-AL (0.5~100L/H), and the vehicle engine uses CX-M9-AL (6~ 600L/H), accuracy requirements are 0.5%FS, pass pulse output to GPS module for remote monitoring.
2、US TOYOTA robot factory: TOYOTA's confidentiality is as strict as that of the product. The following are information that Toyota confirms and can disclose. Toyota purchased our flowmeter for the robot arm at the time, and the medium was petroleum (translated literally Petroleum) minimum flow: 2.5cc/min, common flow: 2.5cc/min, maximum flow: 20cc/min, viscosity is 4.3cp, there are two special requirements, 1) product quality must be light, because the robot arm one day Thousands of swings back and forth. 2) Because the arm swings indefinitely, the flowmeter must be universal. These two points we happen to have proprietary technology can satisfy.
3、Bulgarian BEEA Food Additive Project: Quantitative addition of liquid during production, viscosity 5 cSt, 80 cSt and 150 cSt, flow rate 20 L/min, but each time quantification 50-2000 mL, clamp connection, and resolution required 1ml, so we customized high-frequency CX-M12-SS (0.3 ~ 30L/min), K coefficient of 0.421ml/p.

Sulfuric acid flow meter, Contact email: leon@microflowmeter.com
