Vegetable oil flow meter

Vegetable oil flow meter， Contact email: leon@microflowmeter.com

Vegetable oil flow meter is widely used in petroleum, chemical and hydraulic industries due to its advantages of high precision, simple installation, stable performance and good repeatability.However, the Vegetable oil flow meter that can be produced domestically can only be applied due to the impatience of high pressure In the low pressure occasion, the high pressure measurement occasion can only rely on the foreign imported high pressure flowmeter.Therefore, the research of the high pressure Vegetable oil flow meter will help to expand the domestic application of the Vegetable oil flow meter and promote the development of the domestic flow measurement. Deep instrumentation independent research and development of the Vegetable oil flow meter pressure up to 1000bar, it can be said has reached a higher level in the world, and obtain measurement certificate.

Shanghai JSN Micro Flow Meter CO.,LTD is an automatic meter production R&D enterprise approved by the Chinese government; it is mainly engaged in the research, development, and manufacturing of high-end technologies, processes and related equipment in the field of fluid measurement and control to meet the needs of China and the world for fluid measurement and control equipment. And the higher requirements of the products. The company adopts international advanced product design, manufacturing and management technologies, and development, produce the high quality super micro liquid flow meter,vegetable oil flow meter ,mass flow meter, circle spur gear flow meter,gear pump,gear metering pump to meet China and world's higher requirement. We not only has superior high-tech comprehensive capabilities and strict quality management, measurement management and other systems as well as improved processing and testing methods, but also has a talent team that has made important contributions to the development of flow meters and pumps in China and the world.

Vegetable oil flow meter is a new type of volumetric flowmeter, in addition to a positive displacement flowmeter with high accuracy, the flow is not sensitive to other advantages, there are the following advantages: Wide range, usually in the flow meter is 10: l, and Deep flowmeter is generally 100: 1, or even 1000: 1, the accuracy is still above 0.5%, suitable for high pressure flow measurement, the maximum pressure can reach 100Mpa, especially suitable for the measurement of small flow, the minimum measurement limit can be 0.3ml / min , Less affected by the viscosity characteristics of the medium, suitable for flow measurement under various viscosity conditions.

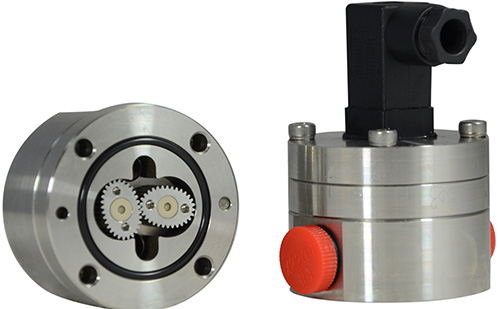

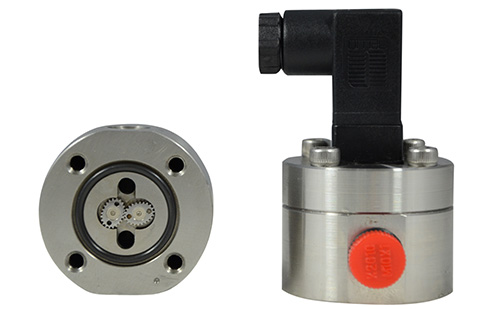

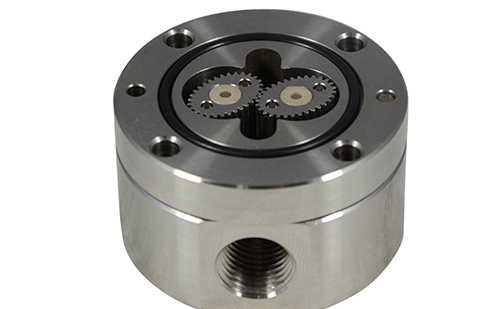

Vegetable oil flow meter Through the rotation of the gear cavity, through a series of deceleration and speed ratio adjustment mechanism, directly connected with the indicator on the instrument panel, and through the mechanical counter for the total display. Or remote display is mainly through The decelerated gear drives the permanent magnet to rotate so that the contacts of the spring relay (Hall sensor) are closed or opened synchronously at the same rotation frequency as the permanent magnet, thereby sending one electric pulse to the other display instrument.
1、McDonald's thermoking cold chain transporter: Remotely monitor the fuel consumption of cold storage and transport vehicle engines via GPS. The cold storage engine uses our CX-M6-AL (0.5~100L/H), and the vehicle engine uses CX-M9-AL (6~ 600L/H), accuracy requirements are 0.5%FS, pass pulse output to GPS module for remote monitoring.
2、US TOYOTA robot factory: TOYOTA's confidentiality is as strict as that of the product. The following are information that Toyota confirms and can disclose. Toyota purchased our flowmeter for the robot arm at the time, and the medium was petroleum (translated literally Petroleum) minimum flow: 2.5cc/min, common flow: 2.5cc/min, maximum flow: 20cc/min, viscosity is 4.3cp, there are two special requirements, 1) product quality must be light, because the robot arm one day Thousands of swings back and forth. 2) Because the arm swings indefinitely, the flowmeter must be universal. These two points we happen to have proprietary technology can satisfy.
3、Taiwan WINNER hydraulic engineering: The company is a professional manufacturer of hydraulic screw cartridge valve international company, need quantitative AW46 hydraulic oil, minimum flow 2ml/min, commonly used flow: 2~200ml/min, maximum flow: 3000ml/ Min, it can be seen that the range ratio is as high as 1:1500, and the required pressure is 250bar. The customer has tried many products, but the effect is not ideal. Finally, our engineers used two weeks to customize the CX-M5-AL for the customer. The current operation is stable, regular return orders.
