email: porter@microflowmeter.com  With thedevelopment of society, all walks of life pay more and more attention to theautomatic process control. After seeing this turning point, he made hisdecision to quit his engineer job in Siemens and return back to establish ourcompany. Our main flow meters are: super mirco flow meter,oval gear flow meter ,coriolismass flow meter,electromagnetic flow meter,piston flow meter,spur gear flowmeter,gear pump,gear metering pump. We use high accurate CNC machining centerto make sure the high quality of our instruments and the cutting accuracy is0.0001mm. We strictly enforce ISO9001 standard. We have many certificates suchas measuring certificates,Ex-proof certificates,CE certificates and SGS and soon. If you choose us, you will enjoy Chinese price and Germany quality.



surfactant micro flow meter

At presentdomestic Oval gear flow meter structure is complex, bulky, bulky, noisy, smallscale, not suitable for low viscosity liquid, the market is more common withDTO series and OGM series. For these problems the country has been unable toovercome, while the Shanghai JiShen instrument Instrument company oval gear Ovalgear flow meter does not have the above problems, such as the same DN25caliber, our model CX-M25-AL, flow range: 0.5 ~ 100L / M, range of 1: 200 orhigher, and weighs only 1.5KG , While the DTO-25, the flow of 600-6000L / H,range ratio of only 1:10, the weight of up to 23KG. All this due totechnological breakthroughs, our chief engineer Tu workers, he is a formerSiemens senior engineer, the use of equipment It is also Siemens CNC MachiningCenter with cutting accuracy up to 0.001mm, which ensures that we produce highquality flow meters.

Shanghai JSN Micro Flow Meter Co., Ltd. is the second manufacturer ofmicro Oval gear flow meter in China. It is developed by Tu engineer (formerSiemens senior engineer) with independent intellectual property rights. Theproduction and processing equipment fully adopts Siemens CNC machining centerto ensure the minimum flow 0.1ml / min, which is rare in the world, theaccuracy of over 90% of peers. We can do more temperature 200C, the pressurecan be customized to 1000bar, many customers use it, but also unbelievable.Also domestic Most of the flowmeter use a year after the new calibration, butthe base depth meter after hundreds of conditions of medium test, the servicelife of more than 8 years, and without secondary calibration, since theestablishment of the base depth instrument Instrument determined to beworld-class flow meter, breaking the monopoly of international brands in themirco flow meter industry, so that customers can buy in the country realGerman-made quality flow meter.



surfactant micro flow meter

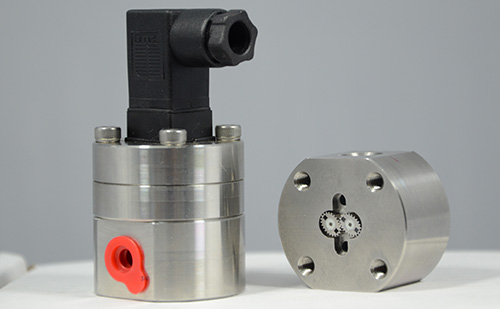

The measuring part of Oval gear flow meter mainly consists of twointermeshing gears and their housings, and the gear generates the acting momentto make it rotate under the pressure difference of the measured medium. Thegears alternately rotate with one another to drive the measured The medium inorder to half the volume of the unit from import to export row by row, so themirco flow meter discharge per revolution measured volume of medium is half thevolume of 4 times the volume flow through the micro-volume flow meter Q Can befigured out



surfactant micro flow meter

Technicaldata of Gear type flow meter

Model	K-factor	Minimum  flow	Flow  range	Accuracy
G0.025	0.025ml	0.001L/Min	0.008~2L/Min	0.5%
G0.04	0.04ml	0.004L/Min	0.2~4  L/min	0.5%
G0.1	0.4ml	0.008L/Min	0.01~8L/min	0.5%
G0.2	0.245ml	0.01L/Min	0.16~16  L/min	0.5%
G0.4	0.4ml	0.01L/Min	0.16~16  L/min	0.5%
G1	1.036ml	0.02L/Min	0.4~80  L/min	0.5%

What are the precautions for the gear flow meter?

1) If the medium temperature is too high, or the pressure is too high, please inform us before purchasing, we can customize it for you.

2) When the pipeline is continuously operated and the flowmeter is to be installed in a horizontal pipeline, a bypass pipeline should be installed to facilitate cleaning and overhaul; when the flowmeter is installed on a vertical pipeline, the flowmeter should be installed on the bypass. In the pipeline, to prevent debris from falling into the instrument. When the fluid flows from bottom to top, the vertical tube in the upper part of the flowmeter should be as short as possible to reduce the precipitation of impurities in the upper piping.
