Shanghai JSNMicro Flow Meter CO.,LTD is located in Shanghai Songjiang industrial park. Weare the professional flow meter manufacture who integrate R&D, productionand sales as one manufacturers. The factory is equipped with advancedproduction and calibration equipment at home and abroad, ample high-endtechnical personnel, and a well-established domestic standardized productionworkshop. It focuses on improving the status of China"s flow meter industry inthe international arena, and continues to work hard. Professionalproduction:microw flow meter,oval gear flow meter ,mass flowmeter,spur gearflow meter,gear pump,gear metering pump etc. Atthe same time, our company adhering to the "integrity first, conscientiouslydo a good job in every product", strict control of each manufacturedproduct, while achieving high product accuracy, excellent quality, low price,no doubt before the sale, no worries after-sale 5S standard, providingprofessional flow system solutions for each customer, providing selectionsuggestions free of charge, maximizing customer satisfaction, reducing customerinvestment costs



precision dosing oval gear flow sensor

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

SinceMay 23, 2011, Shanghai Jinshen Instrument Co., Ltd. successfully released a newoval gear flow meter CX-M and G series, the liquid flowmeter range than thefirst in China reached more than 1: 100, and at the same time to ensureaccuracy 0.5% above the flowmeter industry model.From this since the base meterhas been a pioneer in flowmeter technology, but also one of the high-endflowmeter brand.The perfect technical level, excellent quality standards,innovation has been innovation Wells said. Deep base flow meter has been toprovide customers with a reliable use of the experience in the past rely on theimport of the era, the customer has been a headache for after-sales service,and base deep flow meter with 8 years of use of the long life, in one fellswoop cracked this situation.



precision dosing oval gear flow sensor

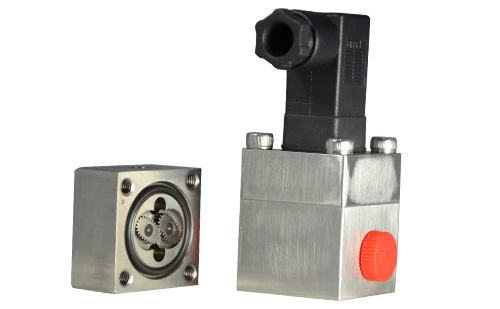

val gear rotor. The gearrotor meshes with the rotating shaft to convey the fluid. The permanent magnetarranged in the rotor is used for the detection of the rotor rotation. Twosensor holes are placed on the upper end to cover the detection sensor. Asealing ring is installed between the housing and the upper and lower end capsto prevent leakage of the measurement fluid. The base depth flowmeter is madeof a material with high wear resistance so that the flowmeter Can guaranteehigh precision measurement within the long service life.



precision dosing oval gear flow sensor

Maintechnical data of JSN micro oval Oval gear flow meter

CX-M2,flow range ：0.5~150ml/min,accuracy 0.5%,G1/8"

CX-M3, flowrange：3~300ml/min,accuracy 0.5%,G1/8"

CX-M5, flowrange：5~1000ml/min,accuracy 0.5%,G1/8"

CX-M6, flowrange：0.5~100L/H,accuracy 0.5%,G1/4"

CX-M9, flowrange：6~600L/H,accuracy 0.5%,G1/4"

CX-M12,flow range：0.3~30L/Min, accuracy 0.5%,G1/2"

CX-M25,flow range：0.5~100L/Min, accuracy 0.5%,G1"
