email: porter@microflowmeter.com  Shanghai JSNMicro Flow Meter CO.,LTD was founded in 2011 by Mr. Stone. It was just the openingof flow meters with high quality and high-end flow equipments. Our mainproducts are mirco flow meter,oval gear flow meter ,coriolis mass flowmeter,electromagnetic flow meter,piston flow meter,spur gear flow meter,gearpump,gear metering pump. Our delivery is within 3-7working days. If you havespecial requirments, we can customize for you based on your parameters and thedelivery time is about 3-4 weeks.In order to guarantee the after-sell services, we cancled our agency and keepclose contact with our client and market of flow meters



liquid micro flow meter

Withthe development of society, the state pays more and more attention to theprocess automation instrumentation industry. However, the Oval gear flow meter industryhas been in a vacancy and has been monopolized by major foreign brands such asMax, KRACHT, OVAL, etc. , People have long endured the expensive, longdelivery, the sale can not be resolved in time and so on, such as semiconductorchip cutting a set of equipment on the millions, once the instrument problems,loss unimaginable, the slayer saw these phenomena, Resolutely resigned assenior engineer in the position of Siemens, the establishment of ShanghaiJi-sheng Instruments Co., Ltd., with great concentration on research anddevelopment of gear flow meter. We have Oval gear flow meter has been awarded anumber of certificates, it is no exaggeration to say that Qishen production Ovalgear flow meter For example, many customers replace the OVAL LSF40 with ourCX-M5-AL because it costs less than half of the LSF40, but has twice the rangethan it does and has the same accuracy.

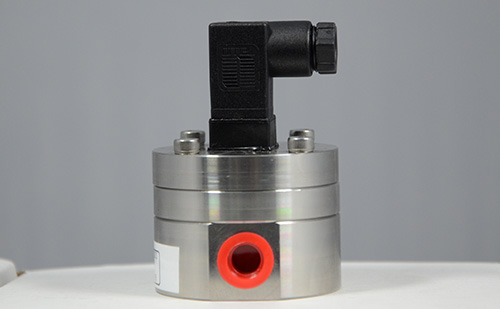

Oval gear flow meter, belonging to a type of volumetric flowmeter,cylindrical shape, with import and export, according to the media with a customfilter. Small size, light weight, easy installation, compact structure, withouttoo much maintenance; other The range ratio is very wide, generally more than1: 100, the minimum flow rate can be measured to 0.3ml / min; and thelinearization accuracy can reach 0.5% FS of full scale, so the use is very wideand can be used for measuring, regulating, controlling and distributing Highand low viscosity, or corrosive liquids, and there are health-type,explosion-proof for a special environment.



liquid micro flow meter

The Ovalgear flow meter is a volumetric flow meter that consists of a flow chamber in achamber and one or several elements that are rotated by fluid flow to form aflow meter. Leakage between the rotating element and the inner wall and theselected working range The internal flow rate is negligible. The rotation ofthe element is transmitted mechanically or by other means to the indicatingdevice to indicate the volume flow of the fluid flowing through.



liquid micro flow meter

Item	model	K-factor	The minimum flow	Flow range	Connection size
Gear flow meter	CX-G0.025-P-AL	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.025-P-SS	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.04-P-AL	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.04-P-SS	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.1-P-AL	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.1-P-SS	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.2-P-AL	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.2-P-SS	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.4-P-AL	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G0.4-P-SS	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G1-P-AL	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G1-P-SS	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G2-P-AL	2ml	0.04L/Min	0.5-60L/min	G3/4
gear flow meter	CX-G2-P-SS	2ml	0.04L/Min	0.5-60L/min	G3/4

Remark: Hightemperature, high pressure, high frequency, special connection, specialmaterials, two-way measurement, etc. can be customized

Oval gear flow meter knowledge：As a volumetric flowmeter, the tiny Oval gear flow meter has relatively low requirements for the front and rear straight pipe sections, and basically no straight pipe section requirements. The turbine flowmeter, as a speed flowmeter, has relatively high requirements for the front and rear straight pipe sections, especially for small diameter ones. Turbine flowmeter must be equipped with a corresponding section of straight pipe. Because of different internal structures, turbine flowmeters tend to generate eddy currents if they are installed too close to the bend pipe, affecting the internal impeller and affecting the accuracy of the flowmeter.
