email: porter@microflowmeter.com  Shanghai JSN Micro Flow MeterCO.,LTD is specialized in production for super micro liquid flow meter,ovalgear flow meter ,mass flow meter.spur gear flow meter,gear pump,gear meteringpump etc. The company"s products face the country and serve theworld. At present, 70% of the instrument is used for export. The companycontinuously absorbs advanced technology from abroad, accumulates richexperience in the production process, strives for innovation and continuousimprovement, and achieves a higher manufacturing level in China. The productsare widely used. In polyurethane, dispensing, chemical fiber, chemical,metallurgy, electric power, sewage treatment, water supply and drainage andother fields.



ink mini flow meter

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

Shanghai JSN Micro Flow Meter Co., Ltd. is the second manufacturer ofmicro Oval gear flow meter in China. It is developed by Tu engineer (formerSiemens senior engineer) with independent intellectual property rights. Theproduction and processing equipment fully adopts Siemens CNC machining centerto ensure the minimum flow 0.1ml / min, which is rare in the world, theaccuracy of over 90% of peers. We can do more temperature 200C, the pressurecan be customized to 1000bar, many customers use it, but also unbelievable.Also domestic Most of the flowmeter use a year after the new calibration, butthe base depth meter after hundreds of conditions of medium test, the servicelife of more than 8 years, and without secondary calibration, since theestablishment of the base depth instrument Instrument determined to beworld-class flow meter, breaking the monopoly of international brands in themirco flow meter industry, so that customers can buy in the country realGerman-made quality flow meter.



ink mini flow meter

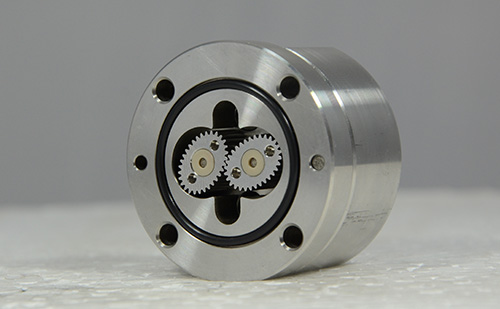

The Ovalgear flow meter consists of a metering box and a pair of gears mounted in themetering box. It forms a sealed initial moon cavity with the upper and lowercover plates as a unit of calculation of the primary displacement. When themeasured liquid enters the flow meter through the pipe, The pressure differencegenerated at the outlet pushes a pair of gears to continuously rotate, and theliquid measured by the initial cavity is continuously delivered to the outlet.The product of the number of rotations of the gear and four times of eachdisplacement is the measured liquid flow rate. The total flowmeter is mainlycomposed of a housing, a counter, a gear and a coupling (magnetic coupling andaxial coupling).



ink mini flow meter

Item	model	K-factor	The minimum flow	Flow range	Connection size
Gear flow meter	CX-G0.025-P-AL	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.025-P-SS	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.04-P-AL	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.04-P-SS	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.1-P-AL	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.1-P-SS	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.2-P-AL	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.2-P-SS	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.4-P-AL	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G0.4-P-SS	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G1-P-AL	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G1-P-SS	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G2-P-AL	2ml	0.04L/Min	0.5-60L/min	G3/4
gear flow meter	CX-G2-P-SS	2ml	0.04L/Min	0.5-60L/min	G3/4

Remark: Hightemperature, high pressure, high frequency, special connection, specialmaterials, two-way measurement, etc. can be customized

What are the precautions for the gear flow meter?

1) In the field installation, it should be noted that the direction of the arrow on the flow meter housing is consistent with the flow direction of the fluid;

2) The flowmeter is installed on the same pipe with the same nominal internal diameter as the inlet and outlet fittings. When the pipe is connected with the flowmeter, the seal should not protrude into the fluid;

3) The fluid to be measured shall be filled with the metering room of the flowmeter and the connecting pipes before and after it. If the fluid to be measured contains gas, a gas separator shall be installed before the flowmeter and the filter;
