Shanghai JSNMicro Flow Meter CO.,LTD has a high-tech talent team who have long been engagedin the design, development, installation and commissioning of automatic controlresearch, and have provided satisfactory sets of systems for variousindustries. With a strong professional team,accumulated a wealth of technology, management experience, covering thecountry"s marketing network and branches, can provide users with fast andconvenient technical services. Since JSN Micro Flow Meter establishment, itrely on Siemens engineer’s powerful technology and high-quality service toquickly gain a good reputation in the instrumentation market. Main products:mircoflow meter,oval gear flow meter , electromagnetic flow meter,piston flowmeter,spur gear flow meter,gear pump,gear metering pump. Adhering to the"build Flow Meter’s aircraft carrier, contribute to China"s automationindustry.



hydraulic oval flowmeter

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

Shanghai JSN Micro Flow Meter Co., Ltd. is the second manufacturer ofmicro Oval gear flow meter in China. It is developed by Tu engineer (formerSiemens senior engineer) with independent intellectual property rights. Theproduction and processing equipment fully adopts Siemens CNC machining centerto ensure the minimum flow 0.1ml / min, which is rare in the world, theaccuracy of over 90% of peers. We can do more temperature 200C, the pressurecan be customized to 1000bar, many customers use it, but also unbelievable.Also domestic Most of the flowmeter use a year after the new calibration, butthe base depth meter after hundreds of conditions of medium test, the servicelife of more than 8 years, and without secondary calibration, since theestablishment of the base depth instrument Instrument determined to beworld-class flow meter, breaking the monopoly of international brands in themirco flow meter industry, so that customers can buy in the country realGerman-made quality flow meter.



hydraulic oval flowmeter

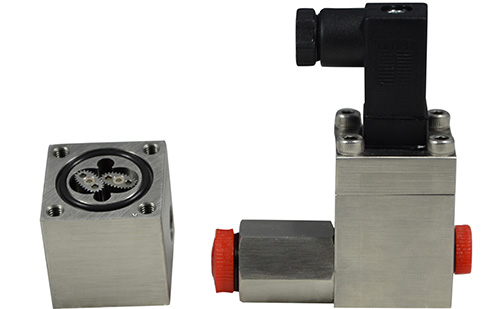

The ovalgear flow meter"s metering principle is the same as that of a generalvolumetric flow meter. The gears mesh with the fluid to be transported. Thefluid to be measured enters the chamber through the oil inlet and pushes therotor so that the fluid is continuously divided into the same volume of fluid.Oil port output. For every one rotation of the rotor, the flowmeter outputs thesame volume of fluid in the four metering chambers in the figure. By measuringthe number of revolutions of the elliptical gear rotor, the volume flow throughthe fluid can be obtained.



hydraulic oval flowmeter

Maintechnical data of JSN micro oval Oval gear flow meter

CX-M2,flow range ：0.5~150ml/min,accuracy 0.5%,G1/8"

CX-M3, flowrange：3~300ml/min,accuracy 0.5%,G1/8"

CX-M5, flowrange：5~1000ml/min,accuracy 0.5%,G1/8"

CX-M6, flowrange：0.5~100L/H,accuracy 0.5%,G1/4"

CX-M9, flowrange：6~600L/H,accuracy 0.5%,G1/4"

CX-M12,flow range：0.3~30L/Min, accuracy 0.5%,G1/2"

CX-M25,flow range：0.5~100L/Min, accuracy 0.5%,G1"

What are the precautions for the gear flow meter?

1) If the medium temperature is too high, or the pressure is too high, please inform us before purchasing, we can customize it for you.

2) When the pipeline is continuously operated and the flowmeter is to be installed in a horizontal pipeline, a bypass pipeline should be installed to facilitate cleaning and overhaul; when the flowmeter is installed on a vertical pipeline, the flowmeter should be installed on the bypass. In the pipeline, to prevent debris from falling into the instrument. When the fluid flows from bottom to top, the vertical tube in the upper part of the flowmeter should be as short as possible to reduce the precipitation of impurities in the upper piping.
