email: porter@microflowmeter.com  Shanghai JSN Micro Flow Meter CO.,LTD since we producemicro flow meter,mass flow meter,piston flow meter,electromagnetic flowmeter,oval gear flow meter,gear pump,gear metering pump,we accumulated richexperience for the flow metering equipment. The company policy is base oncontinuous research and development, which enables the company to manufacturehigh-tech and high-efficiency products. With excellent productreliability, these products are carefully selected through the carefulselection of raw materials and components, during the entire machining process,each part is carefully examined, and finally assembled with skilled experience.Before commissioning, every product has appeared in front of customers with highquality.



grease micro flowmeter

Withthe development of society, the state pays more and more attention to theprocess automation instrumentation industry. However, the Oval gear flow meter industryhas been in a vacancy and has been monopolized by major foreign brands such asMax, KRACHT, OVAL, etc. , People have long endured the expensive, longdelivery, the sale can not be resolved in time and so on, such as semiconductorchip cutting a set of equipment on the millions, once the instrument problems,loss unimaginable, the slayer saw these phenomena, Resolutely resigned assenior engineer in the position of Siemens, the establishment of ShanghaiJi-sheng Instruments Co., Ltd., with great concentration on research anddevelopment of gear flow meter. We have Oval gear flow meter has been awarded anumber of certificates, it is no exaggeration to say that Qishen production Ovalgear flow meter For example, many customers replace the OVAL LSF40 with ourCX-M5-AL because it costs less than half of the LSF40, but has twice the rangethan it does and has the same accuracy.

A newgeneration of deep base Oval gear flow meter has been officially listed on thenational market in early 2017. This is a newly developed volumetric flowmeteror a positive displacement flowmeter developed by QWEN engineers combiningadvanced technologies both at home and abroad. Deep base of the exhibitionhall, will see the flow meters on behalf of the generation (such as DTO, CX-FM,CX-M, CX-G series), also see the base depth meter in the continuoustechnological innovation. Is characterized by small flow, a large range, highprecision, long life. Through several iterations, the quality of the product isgetting higher and higher, while the price is less than one-third of the importedbrands, can be said that the Shanghai base deep mirco flow meter Successfuldevelopment, domestic customers do not have to worry about delivery, sale andother issues.



grease micro flowmeter

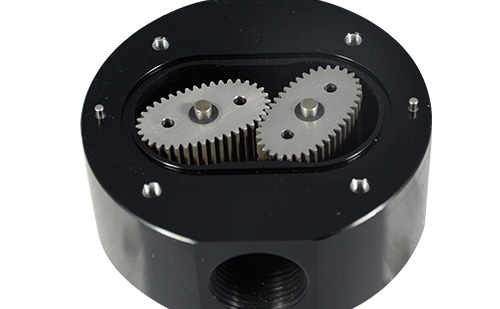

The Ovalgear flow meter is a volumetric flow meter that consists of a flow chamber in achamber and one or several elements that are rotated by fluid flow to form aflow meter. Leakage between the rotating element and the inner wall and theselected working range The internal flow rate is negligible. The rotation ofthe element is transmitted mechanically or by other means to the indicatingdevice to indicate the volume flow of the fluid flowing through.



grease micro flowmeter

Item	model	K-factor	The minimum flow	Flow range	Connection size
Gear flow meter	CX-G0.025-P-AL	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.025-P-SS	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.04-P-AL	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.04-P-SS	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.1-P-AL	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.1-P-SS	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.2-P-AL	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.2-P-SS	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.4-P-AL	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G0.4-P-SS	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G1-P-AL	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G1-P-SS	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G2-P-AL	2ml	0.04L/Min	0.5-60L/min	G3/4
gear flow meter	CX-G2-P-SS	2ml	0.04L/Min	0.5-60L/min	G3/4

Remark: Hightemperature, high pressure, high frequency, special connection, specialmaterials, two-way measurement, etc. can be customized

What are the precautions for the gear flow meter?

1) In the field installation, it should be noted that the direction of the arrow on the flow meter housing is consistent with the flow direction of the fluid;

2) The flowmeter is installed on the same pipe with the same nominal internal diameter as the inlet and outlet fittings. When the pipe is connected with the flowmeter, the seal should not protrude into the fluid;

3) The fluid to be measured shall be filled with the metering room of the flowmeter and the connecting pipes before and after it. If the fluid to be measured contains gas, a gas separator shall be installed before the flowmeter and the filter;
