email: porter@microflowmeter.com  Shanghai JSN Micro Flow MeterCO.,LTD main products:electromagnetic flow meter, Super Micro Liquid Flow Meter,Oval gear flow meter ,MassFlow Meter,Circle Spur Gear Flow Meter,Gear Pump,Gear metering Pump etc. Whichis widely used for electricity, petrochemical, metallurgy, paper, medicine,urban heating, food, textile and sewage treatment in multiple industries. For the past years, JSN baseon many years of experience in instrument production management and combinedwith the ISO9001 quality management system, the company has concluded a set ofquality management systems suitable for the instrument company"s industry.Therefore, from the processing technology to quality management, etc. Standardmanufacturing, production, in order to effectively guarantee to providecustomers with high quality, reliable products.



engine oil mini flow sensor

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

Whymany customers gradually from the major international brands MAX, OVAL Obar,KRACHT Clarke and other gradually purchased base deep Oval gear flow meter it?Many customers also have questions: why base depth can be reported Oval gearflow meter so good? This stems from our engineers is a former Siemens seniorengineer, the device is also fully adopted Siemens CNC machining center, thecutting height of 0.001mm, to ensure that our flowmeters minimum flow meter canbe measured to 0.1ml / min, which are at home and abroad are Rare, the currentproducts have been awarded the national measurement certificate, and ISO, SGS,CE, after thousands of customers hundreds of conditions medium test, once againwe are very grateful to the recognition of domestic and foreign customers.Attitude, carrying domestic and foreign customers look forward to working hardto make real benchmarking business.



engine oil mini flow sensor

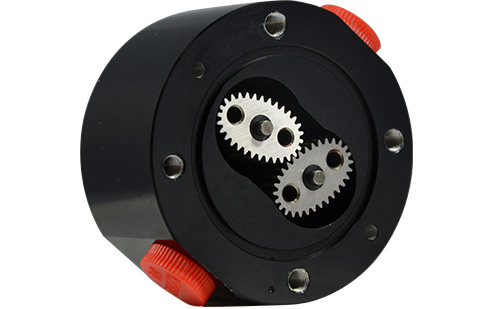

The Ovalgear flow meter is a volumetric flow meter. The metering chamber is composed ofupper and lower end caps. The shell is formed by an oval gear rotor. The gearrotor meshes with the rotating shaft to convey the fluid. The permanent magnetarranged in the rotor is used for the detection of the rotor rotation. Twosensor holes are placed on the upper end to cover the detection sensor. Asealing ring is installed between the housing and the upper and lower end capsto prevent leakage of the measurement fluid. The base depth flowmeter is madeof a material with high wear resistance so that the flowmeter Can guaranteehigh precision measurement within the long service life.



engine oil mini flow sensor

Technicaldata of CX-M Series micro oval Oval gear flow meter

Model	Flow  range	Accuracy	Connection  size
CX-M2	0.5~150ml/min	0.5%	G1/8"
CX-M3	3~300ml/min	0.5%	G1/8"
CX-M5	5~1000ml/min	0.5%	G1/8"
CX-M6	0.5~100L/H	0.5%	G1/4"
CX-M9	6~600L/H	0.5%	G1/4"
CX-M12	0.3~30L/Min	0.5%	G1/2"
CX-M25	0.5~100L/Min	0.5%	G1"

What are the precautions for the gear flow meter? Instrumentation expert tells mirco flow meter to clean the pipeline before installation. If the liquid contains solid particles, a filter must be installed upstream of the pipeline; if the gas is contained, the mirco flow meter should be installed without the requirement of a straight pipe section. It can be installed horizontally or vertically, if the direction is uncertain, we also Can be customized universal, such as the use of the robot arm. In general, ordinary flowmeter, if the measured viscosity or flow of the medium is too small, the general instrument is easy to leak, the accuracy can not be guaranteed, and this is precisely our advantage. Therefore, the base flow meter can meet the needs of most customers.
