MGO Marine gas Oil oval gear flow meter

  MGO Marine gas Oil oval gear flow meter   email: porter@microflowmeter.com

ShanghaiJSN Micro Flow Meter CO.,LTD is an automatic meter production R&Denterprise approved by the Chinese government; it is mainly engaged in theresearch, development, and manufacturing of high-end technologies, processesand related equipment in the field of fluid measurement and control to meet theneeds of China and the world for fluid measurement and control equipment. Andthe higher requirements of the products. The company adopts internationaladvanced product design, manufacturing and management technologies, anddevelopment, produce the high quality super micro liquid flow meter,oval gearflow meter ,mass flow meter, circle spur gear flow meter,gear pump,gearmetering pump to meet China and world’s higher requirement. Wenot only has superior high-tech comprehensive capabilities and strict qualitymanagement, measurement management and other systems as well as improvedprocessing and testing methods, but also has a talent team that has madeimportant contributions to the development of flow meters and pumps in Chinaand the world.



MGO Marine gas Oil oval gear flow meter

Ovalgear flow meter  is widely used inpetroleum, chemical and hydraulic industries due to its advantages of highprecision, simple installation, stable performance and goodrepeatability.However, the Oval gear flow meter that can be produceddomestically can only be applied due to the impatience of high pressure In thelow pressure occasion, the high pressure measurement occasion can only rely onthe foreign imported high pressure flowmeter.Therefore, the research of thehigh pressure Oval gear flow meter will help to expand the domestic applicationof the Oval gear flow meter and promote the development of the domestic flowmeasurement. Deep instrumentation independent research and development of the Ovalgear flow meter pressure up to 1000bar, it can be said has reached a higherlevel in the world, and obtain measurement certificate.

TheCX-M and G-series mirco flow meters are the world"s new volumetric flowmetersintroduced by BASF in 2011. Since its establishment, the CX-M oval gear flowmeter and the G-series mirco flow meters have been selling well in the marketfor more than 100,000 units a year since they were sold. The third generationlaunched in 2017, with more than 90% accuracy and stability, won thecertification of the National Bureau of Metrology. The quality and reliabilityof Shanghai JiShen instruments need not worry. According to the statistics ofChina Instrument Association, Deep flow meter reliability has always beenranked in the top 3, especially in the long-term statistics failure rate is farbelow the industry average, deep advocate "the best after-sales service isno service", but also achieved a continuous three years without qualitycomplaints .



MGO Marine gas Oil oval gear flow meter

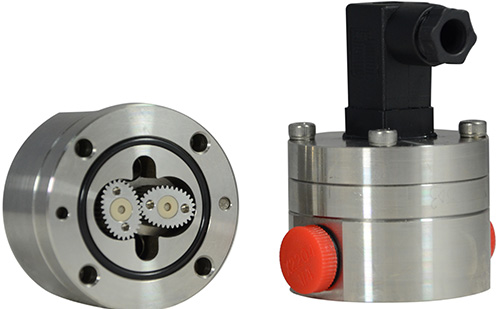

The Ovalgear flow meter is composed of a flow transmitter and a counting mechanism. Themain part of the transmitter consists of a measuring chamber equipped with apair of gear rotors and a sealing coupling. The counting mechanism consists ofa speed reducing mechanism, a precision adjusting mechanism, a counter and apower Pulse transmitter and other components.



MGO Marine gas Oil oval gear flow meter

Maintechnical data of JSN micro oval Oval gear flow meter

CX-M2,flow range ：0.5~150ml/min,accuracy 0.5%,G1/8"

CX-M3, flowrange：3~300ml/min,accuracy 0.5%,G1/8"

CX-M5, flowrange：5~1000ml/min,accuracy 0.5%,G1/8"

CX-M6, flowrange：0.5~100L/H,accuracy 0.5%,G1/4"

CX-M9, flowrange：6~600L/H,accuracy 0.5%,G1/4"

CX-M12,flow range：0.3~30L/Min, accuracy 0.5%,G1/2"

CX-M25,flow range：0.5~100L/Min, accuracy 0.5%,G1"
