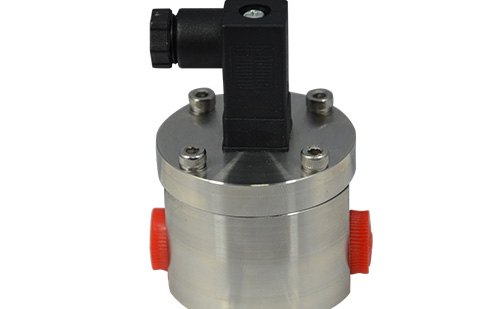

Foam micro flow sensor

  Foam micro flow sensor

email: porter@microflowmeter.com  With thedevelopment of society, all walks of life pay more and more attention to theautomatic process control. After seeing this turning point, he made hisdecision to quit his engineer job in Siemens and return back to establish ourcompany. Our main flow meters are: super mirco flow meter,oval gear flow meter ,coriolismass flow meter,electromagnetic flow meter,piston flow meter,spur gear flowmeter,gear pump,gear metering pump. We use high accurate CNC machining centerto make sure the high quality of our instruments and the cutting accuracy is0.0001mm. We strictly enforce ISO9001 standard. We have many certificates suchas measuring certificates,Ex-proof certificates,CE certificates and SGS and soon. If you choose us, you will enjoy Chinese price and Germany quality.



Foam micro flow sensor

Onceupon a time, China"s manufacturing industry in the world"s processing plant hasalways been the "low quality" representative of the world. Inparticular, the Oval gear flow meter for automatic process control has theadvantages of large volume, large noise, small turndown ratio, , The use ofeasy to leak, instability and so on, leaving customers a headache is that manyproblems in the early stages of product does not appear, and in the event ofafter-sale is very troublesome, bothering money, these are domestic objectiveobjective existence of Oval gear flow meter Therefore, users buy Oval gear flowmeter is like buying lottery tickets, do not know sent to the installation siteOval gear flow meter is a blessing, in a sense, is a matter of course, whilethe base depth meter appeared to solve these problems in one fell swoop.

Shanghai JSN Micro Flow Meter Co., Ltd. is the second manufacturer ofmicro Oval gear flow meter in China. It is developed by Tu engineer (formerSiemens senior engineer) with independent intellectual property rights. Theproduction and processing equipment fully adopts Siemens CNC machining centerto ensure the minimum flow 0.1ml / min, which is rare in the world, theaccuracy of over 90% of peers. We can do more temperature 200C, the pressurecan be customized to 1000bar, many customers use it, but also unbelievable.Also domestic Most of the flowmeter use a year after the new calibration, butthe base depth meter after hundreds of conditions of medium test, the servicelife of more than 8 years, and without secondary calibration, since theestablishment of the base depth instrument Instrument determined to beworld-class flow meter, breaking the monopoly of international brands in themirco flow meter industry, so that customers can buy in the country realGerman-made quality flow meter.



Foam micro flow sensor

Componentsand principles of the Oval gear flow meter - The measurement part of the flowmeter consists of two intermeshing gears and its housing (metering chamber).The measured medium mass per revolution of the gear is half-moon-shaped 4times, in the mirco flow meter hemispherical volume under certain conditions,as long as the measured gear rotation speed n, we can know the measured mediumflow.



Foam micro flow sensor

Maintechnical data of JSN micro oval Oval gear flow meter

CX-M2,flow range ：0.5~150ml/min,accuracy 0.5%,G1/8"

CX-M3, flowrange：3~300ml/min,accuracy 0.5%,G1/8"

CX-M5, flowrange：5~1000ml/min,accuracy 0.5%,G1/8"

CX-M6, flowrange：0.5~100L/H,accuracy 0.5%,G1/4"

CX-M9, flowrange：6~600L/H,accuracy 0.5%,G1/4"

CX-M12,flow range：0.3~30L/Min, accuracy 0.5%,G1/2"

CX-M25,flow range：0.5~100L/Min, accuracy 0.5%,G1"

Commonfault causes, troubleshooting

a. Thegear does not rotate: The gear is jammed by debris, the gear and cavity need tobe cleaned, and the filter is cleaned or replaced.

b. Thesmall flow error is too large: The flowmeter is installed in the wrongdirection, the best position goes up and down, or there are impurities to blockthe gear and need to be cleaned.

c. Theflow error is too large: The actual use flow range is less than or far greaterthan the flowmeter range. The corresponding flowmeter must be selected.

d. Noflow sensor signal: The gear is stuck or the circuit is connected incorrectlyor the circuit is damaged. The gear and cavity must be cleaned, or the circuitmust be correctly connected or replaced.
