email: porter@microflowmeter.com  Shanghai JSN Micro Flow Meter CO.,LTD is located inShanghai Songjiang industry zone,with good location and convenienttransportation. We are the professional producer for micro flow meter,oval gearflow meter ,coriolis mass flow meter,electromagnetic flow meter,piston flowmete,gear flow meter,gear pump. We have rich experience incorporate management and production practice, especially in recent years,through the introduction of advanced domestic and foreign manufacturingtechnology, so that the factory"s management level and technical level hasleapt to a new level.We produce each series of flow meter and gear pump, complete specifications,advanced technology, excellent production equipment, strong technical force,complete inspection methods, quality in line with relevant standardspromulgated by the state and ministries, reliable performance. Annual outputand sales are far ahead of the industry. We are willing to join handswith all companies, Chinese and foreign investors, and Sihai people are lookingforward to making friends in the world, making them profitable to customers andbeing honest in the world.



2 component plant micro flowmeter

At presentdomestic Oval gear flow meter structure is complex, bulky, bulky, noisy, smallscale, not suitable for low viscosity liquid, the market is more common withDTO series and OGM series. For these problems the country has been unable toovercome, while the Shanghai JiShen instrument Instrument company oval gear Ovalgear flow meter does not have the above problems, such as the same DN25caliber, our model CX-M25-AL, flow range: 0.5 ~ 100L / M, range of 1: 200 orhigher, and weighs only 1.5KG , While the DTO-25, the flow of 600-6000L / H,range ratio of only 1:10, the weight of up to 23KG. All this due totechnological breakthroughs, our chief engineer Tu workers, he is a formerSiemens senior engineer, the use of equipment It is also Siemens CNC MachiningCenter with cutting accuracy up to 0.001mm, which ensures that we produce highquality flow meters.

SinceMay 23, 2011, Shanghai Jinshen Instrument Co., Ltd. successfully released a newoval gear flow meter CX-M and G series, the liquid flowmeter range than thefirst in China reached more than 1: 100, and at the same time to ensureaccuracy 0.5% above the flowmeter industry model.From this since the base meterhas been a pioneer in flowmeter technology, but also one of the high-endflowmeter brand.The perfect technical level, excellent quality standards,innovation has been innovation Wells said. Deep base flow meter has been toprovide customers with a reliable use of the experience in the past rely on theimport of the era, the customer has been a headache for after-sales service,and base deep flow meter with 8 years of use of the long life, in one fellswoop cracked this situation.



2 component plant micro flowmeter

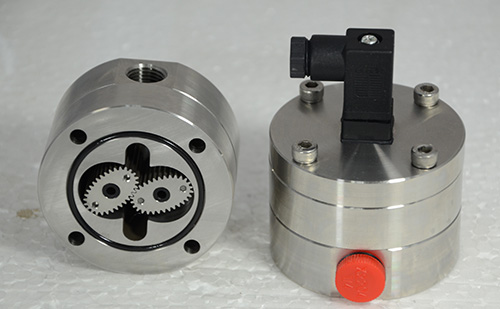

The Ovalgear flow meter is a volumetric flow meter. The metering chamber is composed ofupper and lower end caps. The shell is formed by an oval gear rotor. The gearrotor meshes with the rotating shaft to convey the fluid. The permanent magnetarranged in the rotor is used for the detection of the rotor rotation. Twosensor holes are placed on the upper end to cover the detection sensor. Asealing ring is installed between the housing and the upper and lower end capsto prevent leakage of the measurement fluid. The base depth flowmeter is madeof a material with high wear resistance so that the flowmeter Can guaranteehigh precision measurement within the long service life.



2 component plant micro flowmeter

Item	model	K-factor	The minimum flow	Flow range	Connection size
Gear flow meter	CX-G0.025-P-AL	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.025-P-SS	0.025ml	0.001L/Min	0.004~1 L/min	G1/8
gear flow meter	CX-G0.04-P-AL	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.04-P-SS	0.04ml	0.004L/min	0.01~2L/min	G1/4
gear flow meter	CX-G0.1-P-AL	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.1-P-SS	0.1ml	0.008L/min	0.02~4L/min	G3/8
gear flow meter	CX-G0.2-P-AL	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.2-P-SS	0.245ml	0.01L/Min	0.08~8L/min	G3/8
gear flow meter	CX-G0.4-P-AL	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G0.4-P-SS	0.4ml	0.01L/Min	0.1~20L/min	G1/2
gear flow meter	CX-G1-P-AL	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G1-P-SS	1ml	0.02L/Min	0.2~40L/min	G1/2
gear flow meter	CX-G2-P-AL	2ml	0.04L/Min	0.5-60L/min	G3/4
gear flow meter	CX-G2-P-SS	2ml	0.04L/Min	0.5-60L/min	G3/4

Remark: Hightemperature, high pressure, high frequency, special connection, specialmaterials, two-way measurement, etc. can be customized

What are the precautions for the gear flow meter?

1) If the medium temperature is too high, or the pressure is too high, please inform us before purchasing, we can customize it for you.

2) When the pipeline is continuously operated and the flowmeter is to be installed in a horizontal pipeline, a bypass pipeline should be installed to facilitate cleaning and overhaul; when the flowmeter is installed on a vertical pipeline, the flowmeter should be installed on the bypass. In the pipeline, to prevent debris from falling into the instrument. When the fluid flows from bottom to top, the vertical tube in the upper part of the flowmeter should be as short as possible to reduce the precipitation of impurities in the upper piping.
