Hydrogen Coriolis flow meter

Today a customer wanted to consult what kind of Coriolis mass flowmeter to choose for measuring hydrogen

He provided the following information:

Medium: Hydrogen

Pipe diameter: DN15

Pressure: 16mpa

Temperature: 100 degrees

Flow rate: 0~30Nm3/h

Flange connection (flange material CF8), flange standard HG/T20592(B)-2009 FM

Flowmeter material: 316L

Output signal: 4~20mA＋HART

Accuracy: 0.5%

Power supply: 24VDC

Electrical interface: 2×1/2″NPT (F)

Explosion-proof grade Exd ⅡCT4

Protection grade IP67

Installation form Integrated

Output indicator: Backlit LCD head

Matching flange required

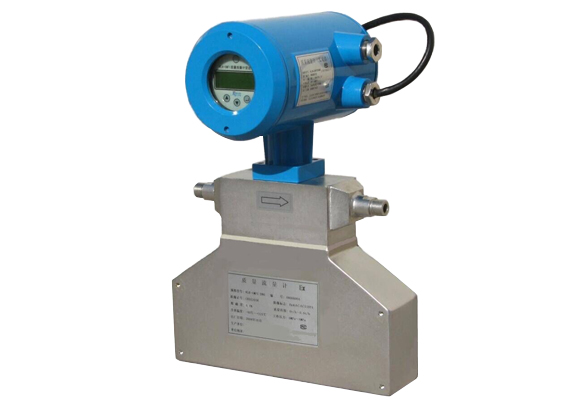

After analysis by our technicians, we recommended the CXDMF-1-DN3 Coriolis flowmeter to him

Model: CXDMF-1-DN3

Medium: Hydrogen

Pressure: 20MPa

Output: 4-20mA+0-10KHz+485 communication+Hart

Display unit: m³/h

Flow rate: 0-30Nm³/h

Temperature: -50~150℃

Display: instantaneous flow rate, cumulative flow rate, temperature

Accuracy: ±0.5%

Power supply: 24V DC

Material: measuring tube 316L stainless steel, shell 316L stainless steel

Type: integrated

Cable: 0 meters

Explosion-proof grade: ExdibIICT6Gb, Atex

Protection grade: IP67

Interface: high pressure customization (flange can be made)

If you are also troubled by the selection of gas flowmeter Coriolis flowmeter, please consult CIXIFM winny:
