Size：M2;M3;M5;M6;M9;M12;M25;M40;M50
The 0.2% Accuracy and 100Mpa max pressure Hydraulic oil flow meter
Micro flow meter principle is a liquid pushing one pair of oval gears; volume of each cavity is a fixed volume; gear speed leads, the sensor sends the sync pulse count, oval gear rotated by the magnetic seal coupling and reduction gear mechanism passed directly to the counter indicates the total flow through the meter. If the additional transmission means, the display together with electrical instrument can achieve remote only instantaneous flow or accumulated flow.
Hydraulic oil flow meter provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink,gum, insecticides & non-conductive liquids either pumped or gravity fed .
| Item1 | CX-M2-SS/AL | CX-M3-SS/AL | CX-M5-SS/AL | CX-M6-SS/AL | CX-M9-SS/AL | CX-M12-SS/AL | CX-M25-SS/AL | CX-M40-SS/AL | CX-M50-SS/AL |
| Flow Range | 0.5~150ml/min | 3~300ml/min | 5~1000ml/min | 0.5~100 L/h | 6~600L/h | 0.3~30L/min | 0.5~100L/min | 15~200L/min | 15~500L/min |
Connection | G1/8 female thread | G1/8
female thread | G1/8
female thread | G1/4
female thread | G1/4
female thread | G1/4
female thread | G1
female thread | G1.5
female thread | G2 female thread |
| Item2 | The Professional Hydraulic oil flow meter | ||
| Accuracy | the standard type accuracy is 0.5%;the best accuracy is 0.2%(More better than 90% peers) | ||
| Temperature | -30~80C (Customized to highest temperature is 200C) | ||
| Pressure | Standard type:32Bar(customized for 100Mpa) | ||
| Output | square-wave pulse | ||
| Supply | 4~26VDC | ||
| -SS series | The material of hydraulic oil flow meter is all stainless steel material | ||
| Material | chamber:ss316 ,gear:SS316L, shaft:SS316L | ||
| Medium | suitable for various chemical liquid | ||
| -AL series | Some material is AL | ||
| Material | suitable for non-corrosive fluid | ||
| Medium | chamber: anodized aluminum , gear: anodized aluminum, shaft:SS316L | ||

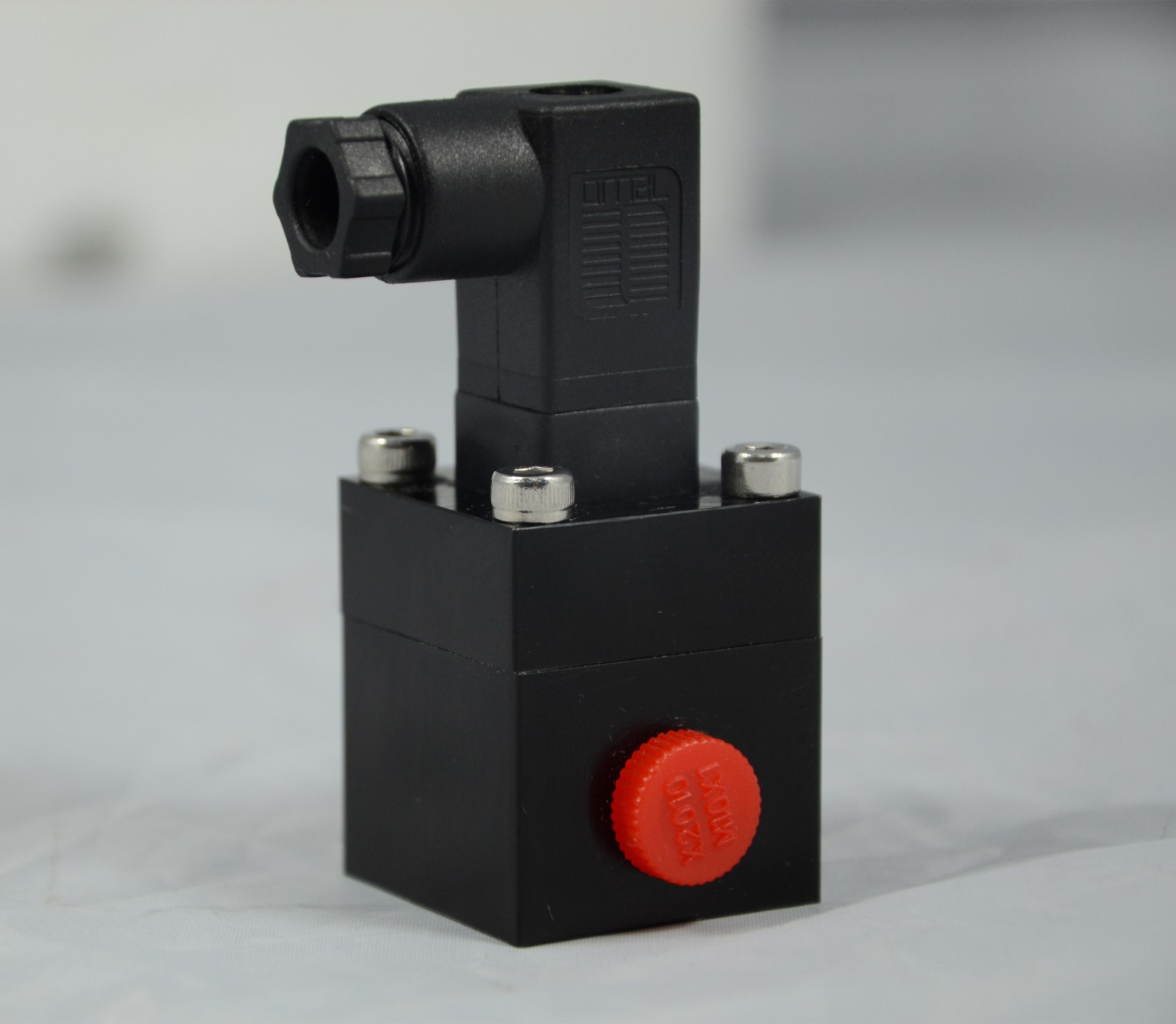

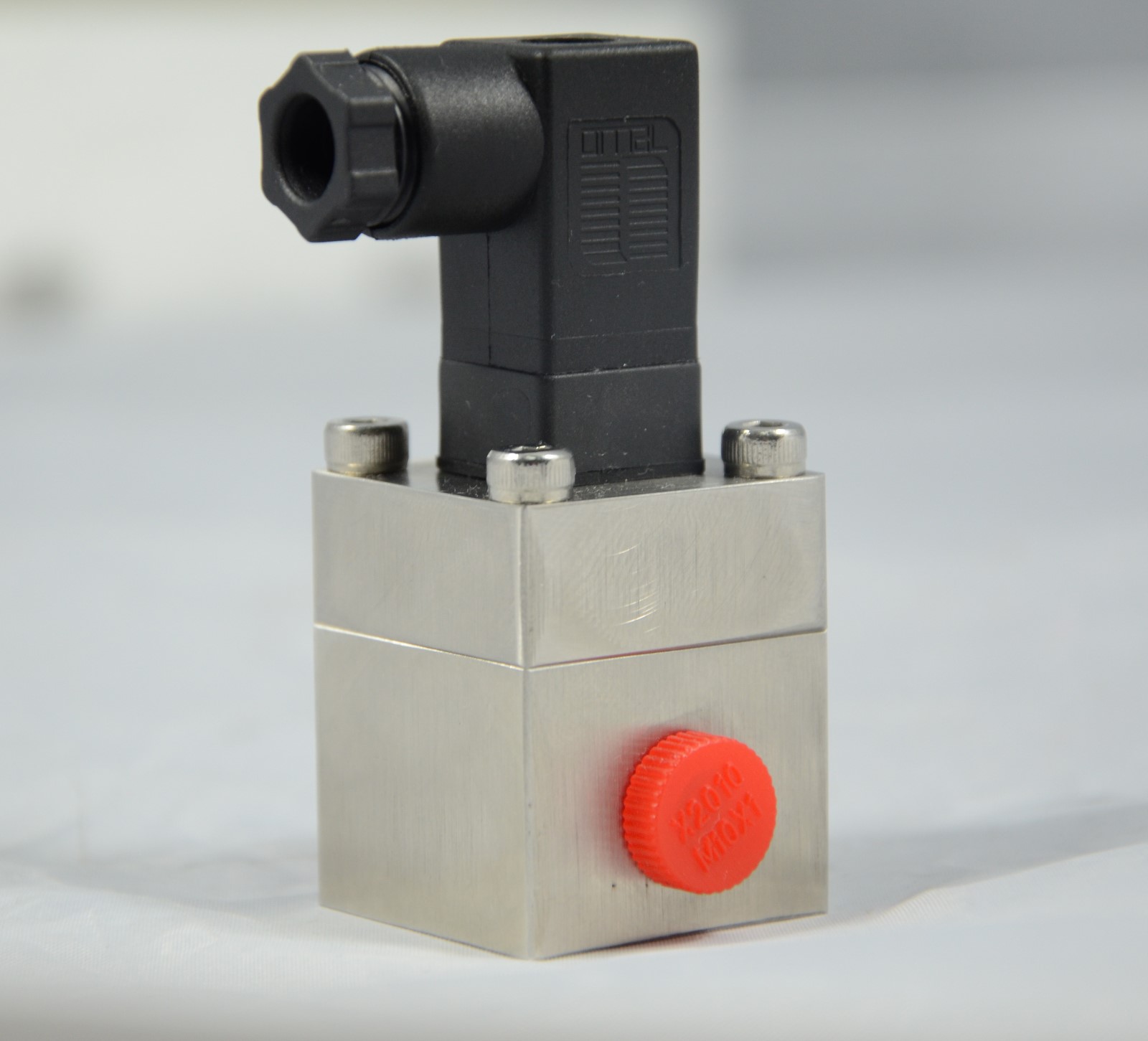

The JSN hydraulic oil micro flow meter material is stainless steel .
with the advanced technology and SIEMENS CNC machine tools protect
the 0.2% accuracy.It's 30% more betten than other suppliers.
Moreover,the hydraulic oil industry need the flow meters could working
under the high pressure.
Yes.the JSN hudraulic oil flow meter's mas pressure is 100Mpa.
The JSN micro flow meter with SIEMENS CNC technology.So the min flow is 0.1ml/min.
The size of M2 micro flow meter is about 30mm.

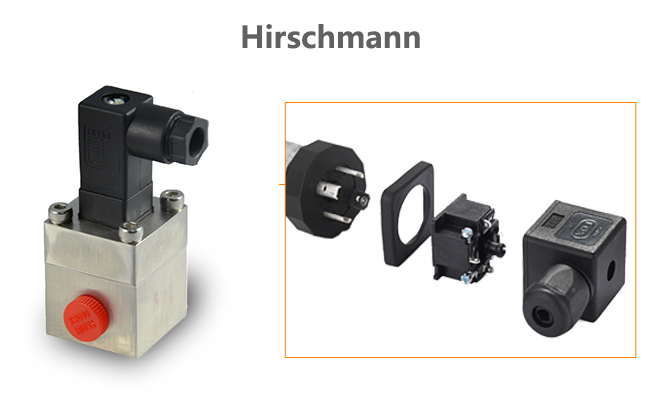

The Picture is the Hirschmann connection.It's one of the micro flow meter connections.
The another connections is reed switch.The Hirschmann is fron Italy.So the gydraulic oil flow meter
could ensure the stable output signal.And the working life is about the 5 years.
The Clients From Englind and Autralia .For the micro flow meter.
Customer satisfaction is purpose of our services.
Our Engineer is from SIEMENS .We could provide the professional
thchnology support.
Welcome to Our Factory.
